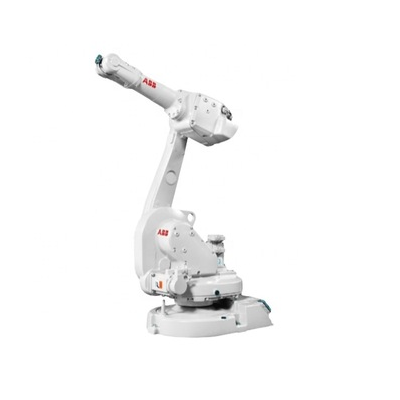

arc welding robotic arm ABB IRB 1410 general industrial 6 axis robotic arm
Main Specifications
Model: ABB IRB 1410
Maximum reach: 1440 mm
Maximum payload:5kg
Pose repeatabilit: ± 0.02 mm
Number of axes :6
Weight: 225 kg
Protection rating: IP67
Product Description
| Production Name | arc welding robotic arm ABB IRB 1410 general industrial 6 axis robotic arm |
| Model | ABB IRB 1410 |
| Application | arc welding robotic arm |
| Maximum reach | 1440 mm |
| Maximum payload | 5 kg |
| Pose repeatability (ISO 9283) | ± 0.02 mm |
| Number of axis | 6 |
| Mounting position | Floor |
| Footprint | 620 x 450 mm |
| Weight | 225 kg |
| Protection rating | IP67 |
| Controller | IRC5 Single Cabinet/IRC5 Compact |
| Motion range | |
| A1 | +170° to -170° |
| A2 | +70° to -70° |
| A3 | +70° to -65° |
| A4 | +150° to -150° |
| A5 | +115° to -115° |
| A6 | +300° to -300° |
Detailed Images
Our Services
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
