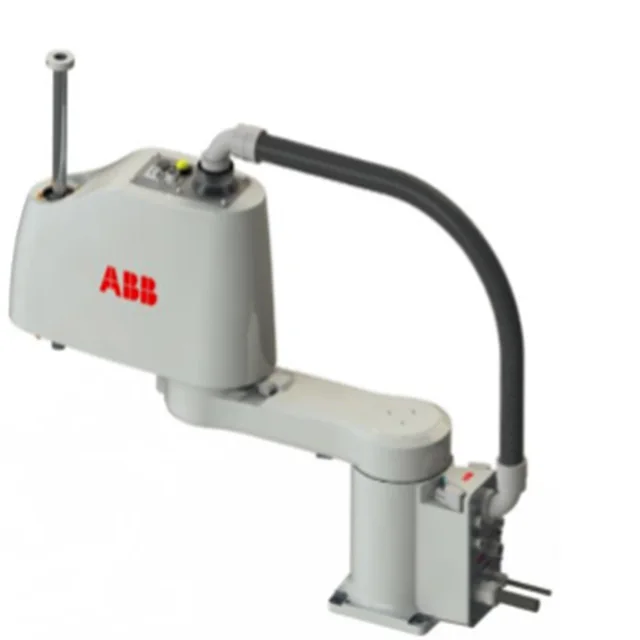

Articulated Robot Arm ABB IRB 910SC 4 dof robotic dealing small parts assembly and disassembly robot arm
Main Specifications
Model:IRB 910SC-3/0.55
Maximum reach:550 mm
Maximum payload:3 kg
Number of axes :4
Weight:25 kg
Protection rating:IP20
Product Description
| Production Name | Articulated Robot Arm ABB IRB 910SC 4 dof robotic dealing small parts assembly and disassembly robot arm |
| Model | IRB 910SC 3/0.55 |
| Application | small parts assembly and disassembly robot arm |
| Maximum reach | 550 mm |
| Maximum payload | 3KG |
| Number of axes | 4 |
| Mounting position | table |
| Footprint | 160mm x 160mm |
| Weight | 25 kg |
| Protection rating | IP20 |
| Controller | IRC5 compact |

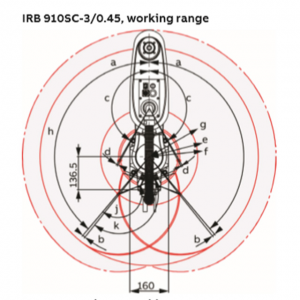

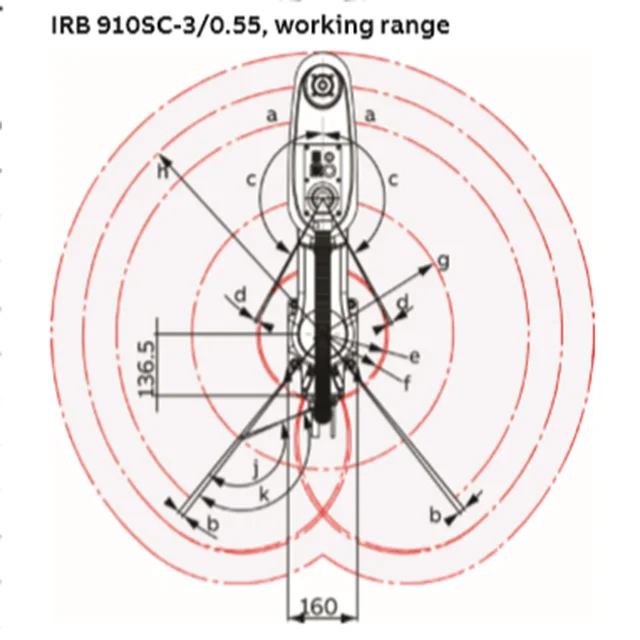

| Motion range | |
| A1 | 140° to -140° |
| A2 | 150° to -150° |
| A3 | 0° to -180° |
| A4 | 400 to -400° |
Detailed Images
Our Services
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
