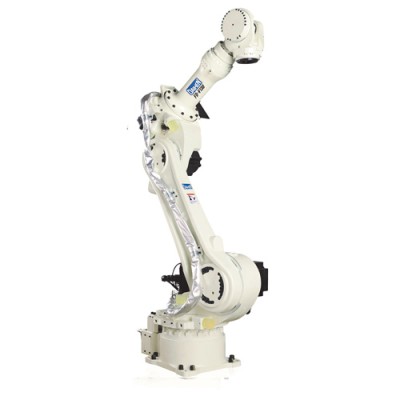

OTC FD-V80 Robot arm

OTC FD-V80 Robot arm

Our FD-V80, 6-axis robot is designed for material-handling and other applications that require a

larger payload and reach.  Built-in application cabling, utilities and user portal simplifies

end-of-arm tooling integration and installation.

ROBOT MANIPULATOR

• Offers a wide working range with an independently articulated arm

• Improved vibration restraining control provides smooth robot movement

• Single source technology – all components are manufactured by OTC DAIHEN.

• Highly versatile design supports picking, cutting, load/unload, welding, assembly, finishing and sorting applications.

• Through-arm support for end-of-arm tool interfacing including, pneumatic, power, I/O (digital, analog and network) and user/application-specific utilities.

FD11 ROBOT CONTROLLER

• Windows XP based open architecture

• Large memory capacity and 40 Input / 40 Output control signals

• Advanced PLC functions allow for ladder diagram editing directly through the teach pendant

• Network capabilities – connects to Ethernet, DeviceNet, and PROFIBUS connections (may require additional hardware)

TEACH PENDANT

• Icon displays assist in quick & easy teaching

• 640×480 VGA color screen with LED backlight 65536 color display

• 3 position enable switch provides increased safety

• Multi-screen function allows user to view up to 4 screens simultaneously

• On-screen help function with complete instruction manuals

• Standard touch screen display with jog dial operation
