ABB IRB 140-6/0.8

small industrial robot arm
价格 $25000.00对比
发货 China(Mainland)
销量 暂无
评价 已有 0 条评价
人气 已有 31 人关注
Maximum reach
  • 800mm
Maximum payload
  • 6 kg
Pose repeatabilit
  • ± 0.03mm
数量
+-
库存999Piece


Product Description

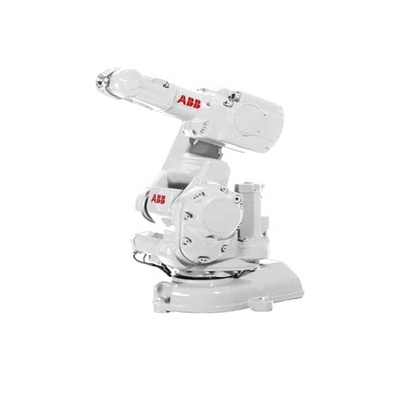

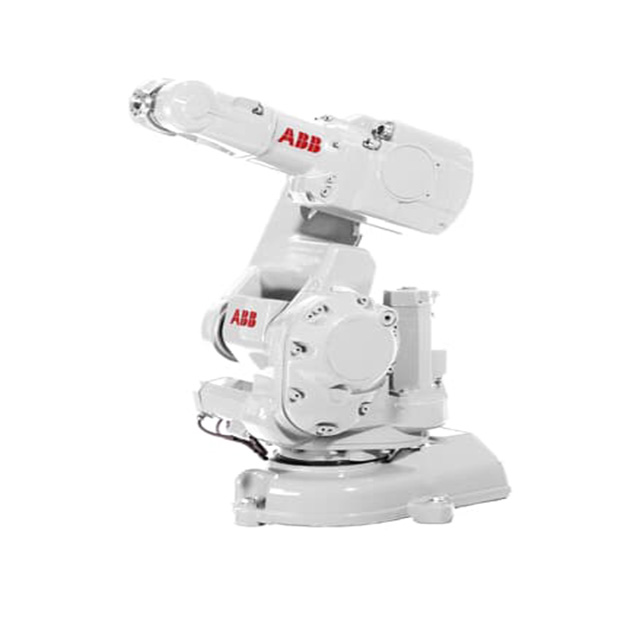

IRB 140

Small, powerful, and fast 6-axes robot ABB IRB 140 small industrial robot arm with fast response 6-axes robot arm totally application Cleaning/Spraying robot arm.

Model

IRB 140

Maximum reach

800mm

Maximum payload

6 kg

Pose repeatability

± 0.03mm

Number of axes

6

Mounting position

Any Angel

Footprint

400 x 450 mm

Weight

98kg

Protection rating

IP67

Controller

IIRC5 Compact/IRC5 Single Cabinet/ IRC5 PMC Panel Mounted

Performance(according to ISO 9283)


1 kg picking cycle

IRB 140

25 x 300 x 25 mm

0.85 s

Number of axes

6

Acceleration time 0-1 m/s

0.15 s

Position repeatability

0.03 mm


  • Description of application effect

Compact and very powerful. The IRB 140 six axes multipurpose industrial robot handles a payload of 6 kg with a reach of 810 mm (to axis 5) It can be floor mounted, inverted or wall mounted at any angle. The robust design with fully integrated cables adds to the overall flexibility and the collision detection function ensures the robot is reliable and safe.

Fast, accurate and agile
Designed with a light, aluminum structure, the motors ensure the robot is enabled with a fast acceleration, and can deliver
accuracy and agility in any application.


Small, powerful and fast

The compact, powerful IRB 140 industrial robot is a six axis multipurpose robot that handles payload of 6 kg, with long reach (810 mm). The IRB 140 can be floor mounted, inverted or on the wall in any angle. Available as Standard, Foundry Plus 2, Clean Room and Wash versions, all mechanical arms completely IP67 protected, making IRB 140 easy to integrate in and suitable for a variety of applications. Uniquely extended radius of working area due to bend-back mechanism of upper arm, axis 1 rotation of 360 degrees even as wall mounted

Company Introduction

Xiangjing (Shanghai) Electromechanical Technology Co., Ltd. is mainly engaged in the technical development, technical consultation, technical service, installation and commissioning services of marine engineering, oil and gas, petrochemical, water conservancy and hydropower, thermal power generation and other mechanical and electrical equipment products; Well-known brand fluid control valves; instrumentation; hydraulic pipe fittings; bearings; seals; industrial automation and other high-tech enterprises.

FAQ

Q: How long will your company can provide goods delivery?

A: Our company have common goods in stock so we can deliver our goods in a short time. After you pay the money , we will ship our goods in three days.
Q: What is your payment term?
A:Normally T/T 30% in advance ,balance to be paid before delivery .We also support trade assurance ,O/A.
