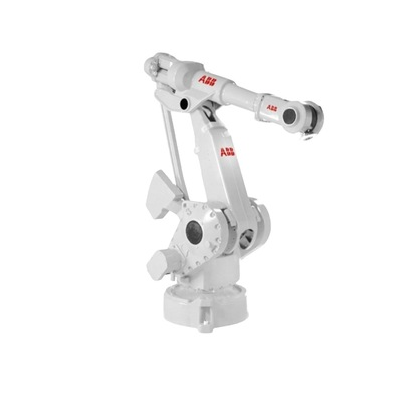

industrial cutting/deburring robots ABB IRB 4400 with 6 axis robot arm
Main Specifications
Model:IRB 4400
Maximum reach:2530 mm
Maximum payload:10kg
Pose repeatabilit: ± 0.05 mm
Number of axes :6
Weight: 1040 kg
Protection rating: Standard version IP 54, Foundry Plus 2 IP 67
Product Description
| Production Name | industrial cutting/deburring robots ABB IRB 4400 with 6 axis robot arm |
| Model | IRB 4400 |
| Application | die spraying robot |
| Maximum reach | 2530 mm |
| Maximum payload | 10kg |
| Pose repeatability (ISO 9283) | ± 0.05mm |
| Number of axis | 6 |
| Mounting position | Floor |
| Footprint | 920 x 640 mm |
| Weight | 1040 kg |
| Protection rating | Standard version IP 54, Foundry Plus 2 IP 67 |
| Controller | IRC5 Single Cabinet |

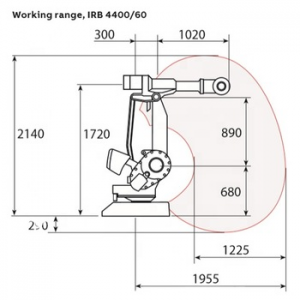

| Motion range | |
| A1 | +165° to -165° |
| A2 | +95° to -70° |
| A3 | +65° to -60° |
| A4 | +200° to -200° |
| A5 | 120° to -120° |
| A6 | +400° to -400° |
Detailed Images
