EPSON C3 compact 6 axis robot

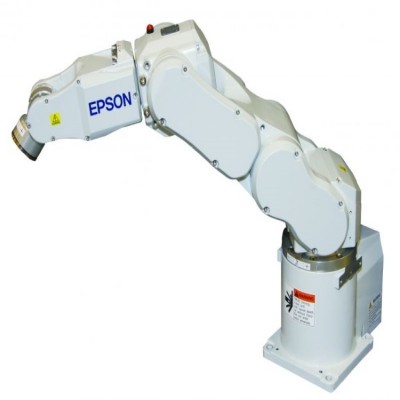

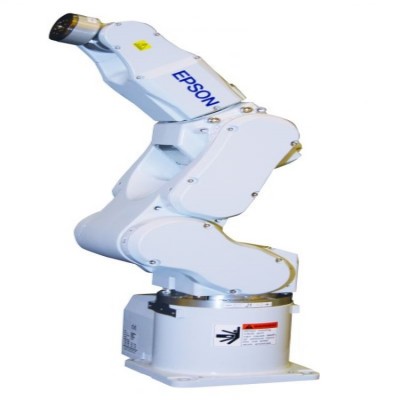

Epson C3 compact 6-axis robot Slim linear body compact wrist

                                                             1.       Industry leading cycle time

                                                             2.       First class range of motion

                                                             3.       Compact design for maximum flexibility

                                                             4.       ISO clean and ESD compliant

Epson C3's cycle time is as low as 0.37 seconds, faster than many competitors' SCARA models.In the same kind of products, all six joints of C3 are 32.4% faster than the competitors.

C3 has a unique footprint to range of motion ratio, and its outstanding flexibility makes it easy for Epson robots to do tasks that other small 6-axis arms can't do (or those that require more cycle time to complete).

High performance

• IIndustry leading cycle time

• Faster than competitor SCARA

• Load up to 3 kg while maintaining the fastest cycle time

• High repeat positioning accuracy, in line with customer expectations

• Slim linear body design and ultra compact wrist provide maximum flexibility

• First class range of motion, can reach other small robots can not reach the area

Variety of arm types and configuration

• The robot arm is 175 mm and 225 mm in length,and users can choose the most suitable product      according to the operation;

• Unique three-axis robot model (due to the cancellation of the fourth axis of the application, no J4 positioning is required);

• These models are suitable for semiconductor and electrostatic sensitive applications, such as hard disk drive assembly;

• Adopt the best controller and development software of the same kind;

• The convenience of Epson RC + software is in the leading position in the industry, which can help shorten the developmen time;

• G1 robot adopts double-layer controller, which is a solution with high performance and low cost;

• Integrated options can maximize system performance and reduce overall development time (for more details, please refer to "options");

• The processingperformance is outstanding, and the speed is several times of that of competitive products;

First class controller and development software

Ÿ   Epson RC + is an industry leader in simplicity and time saving

Ÿ   Two hierarchical controller designs make G6 robot a high performance or low cost solution

Ÿ   Integration options maximize system performance and reduce total development time

Ÿ   High performance processing power is many times faster than competitors' products

Ÿ   Full integration options

Ÿ   Visual guidance

Ÿ   Network connectivity

Ÿ   Device network, fieldbus, Ethernet, IP, CC link fieldbus connection

Ÿ   Safety and audit

Ÿ   GUI Builder

Ÿ   Other axis controls

Ÿ   Belt tracking

Ÿ   Clean / ESD models available

Full integration options

Ÿ   Visual guidance

Ÿ   Network connectivity

Ÿ   Device network, fieldbus, Ethernet, IP, CC link fieldbus connection

Ÿ   Safety and audit

Ÿ   GUI Builder

Ÿ   Other axis controls

Ÿ   Belt tracking

Ÿ   Clean / ESD models available

Suitable for a variety of applications and industries

Ÿ   Automobile

Ÿ   Medical

Ÿ   Laboratory automation

Ÿ   Consumer products

Ÿ   Industrial product

Ÿ   Signal communication

Ÿ   Pharmacy

Ÿ   Semiconductor

Ÿ   Electronic
