CP700L Robot
HIGH-SPEED PALLETIZING ROBOT
The CP series palletizing robots feature industry leading cycle times, a broad motion range, a space and energy saving controller, and easy-to-use palletizing software to program the robot’s operation. The CP700L palletizing robot has a maximum payload capacity of 700 kg, and it drives the flexible automation of end-of-line and distribution processes in a wide range of industries, as well as supports the highest production line efficiencies.
Payload 700 kg Palletizing ✽1: The figure conforms to ISO9283. ✽2: Motion pattern (400 mm up, 2,000 mm horizontal, 400 mm down in a to-and-fro motion)CP700L Robot Overview:

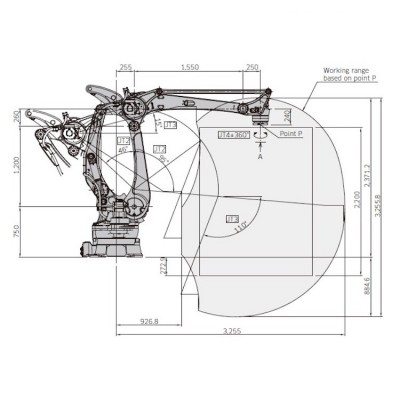

Max. Reach 3,255 mmApplications:
CP700L Robot SPECIFICATIONS
CP700L SPECIFICATIONS Type Articulated Robot Degrees of Freedom (axes) 4 Payload (kg) 700 Positional Repeatability (mm) ✽1 ±0.5 Max. Reach (mm) 3,255 Motion Range (°) Arm Rotation (JT1) ±160 Arm Out-in (JT2) +95 - −46 Arm Up-down (JT3) +15 - −110 Wrist Swivel (JT4) ±360 Wrist Bend (JT5) - Max. Speed (°/s) Arm Rotation (JT1) 75 Arm Out-in (JT2) 65 Arm Up-down (JT3) 65 Wrist Swivel (JT4) 170 Moment of inertia (kg•㎡) 500 Palletizing Capacity (cycle/hour) ✽2 900 Mass (kg) 1,650 Mounting Floor Installation Environment Ambient Temperature (°C) 0 - 45 Relative Humidity (%) 35 - 85 (No dew, nor frost allowed) Controller / Power Requirements (kVA) E03 / 12
FAQ
Q.How Long will You Need before Delivery? A:We have many common models in stock, so that wecan deliver the goods very soon(less than 3 days).
Q.What is Your Payment Term?
A:Normally T/T 30% in advance, balance to be paidbefore delivery, We also support the trade assurance,OlA.
Q:What is Trade Assurance? A:Trade Assurance is a free service by Alibaba.comthat's designed to help create trust between buyers andsuppliers.Trade Assurance helps buyers in the event ofshipping and quality-related dispute.
Q:Does Trade Assurance Charge Fees? A:No.Trade Assurance is free for both buyers andsuppliers.
Q:What Kind of Trade Terms Can You Do?
A:EX-WORKS,FOB,CFR,CIF,etc.
