Radar measurement Time-of-Flight Micropilot FMR57 E+H origin quality sensor applying solids level
Specification
| Product Name | Radar measurement Time-of-Flight Micropilot FMR57 E+H origin quality sensor applying solids level |
| Model | Micropilot FMR57 |
| Application | Radar Micropilot measurement |
| Supply / Communication | 2-wire / 4-wire |
| Frequency | K-band (~26 GHz) |
| Antenna | Parabolic DN200/8", DN250/10" Horn DN80/3", DN100/4" |
| Accuracy | +/- 3 mm (0.12 in) |
| Ambient temperature | -40...+80 °C (-40...+176 °F) |
| Process temperature | -40...+400 °C (-40...+752 °F) |
| Process pressure absolute | Vacuum...16 bar |
| Main wetted parts | 316L, PEEK, PTFE, Polyamid |

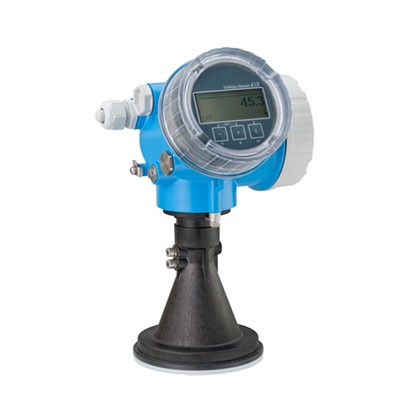

Detailed Images
=
Our Services
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
