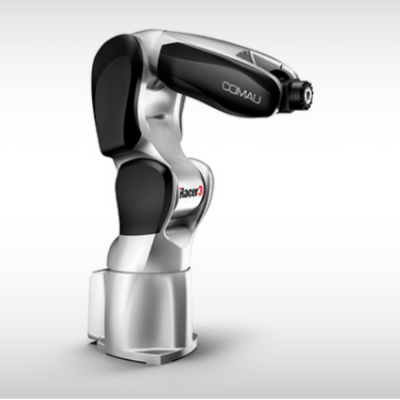

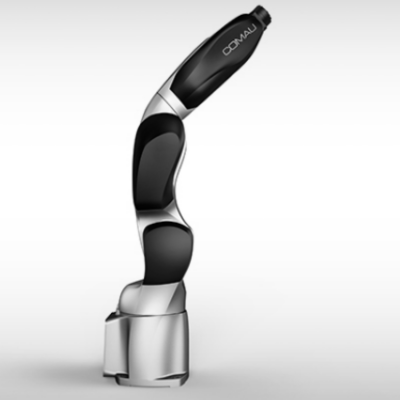

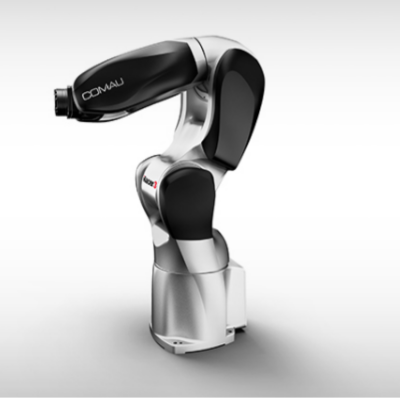

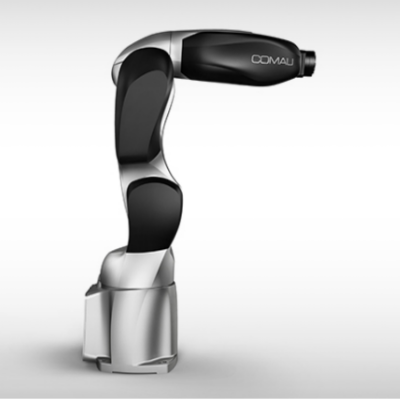

Pick And Place Robot Arm Of Racer-3-0.63 For The Machine Maintenance And Cosmetic Seal With Cobot Ro图1Pick And Place Robot Arm Of Racer-3-0.63 For The Machine Maintenance And Cosmetic Seal With Cobot Ro图2Pick And Place Robot Arm Of Racer-3-0.63 For The Machine Maintenance And Cosmetic Seal With Cobot Ro图3Pick And Place Robot Arm Of Racer-3-0.63 For The Machine Maintenance And Cosmetic Seal With Cobot Ro图4Pick And Place Robot Arm Of Racer-3-0.63 For The Machine Maintenance And Cosmetic Seal With Cobot Ro图5

Pick And Place Robot Arm Of Racer-3-0.63 For The Machine Maintenance And Cosmetic Seal With Cobot Ro

2021-12-23 17:29330已售
价格 $30000.00
发货 China(Mainland)预售,付款后60天内
品牌 Comau
Maximum wrist payload (Kg) 3kg
Maximum horizontal reach (mm) 630mm
Repeatability (mm) 0.02mm
库存 999起订1件
产品详情

Pick And Place Robot Arm Of Racer-3-0.63 For The Machine Maintenance And Cosmetic Seal With Cobot Robot

Product Description

Specification

item

value

Place of Origin

China

Brand Name

Comau

Application

The Machine Maintenance And Cosmetic Seal

Features

New

Condition

New

Warranty

1 year

After-sales Service Provided

Engineers available to service machinery overseas

Applicable Industries

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other

After Warranty Service

Video technical support, online support, Spare parts

Local Service Location

Egypt, Turkey, United Kingdom, United States, Italy, Viet Nam, India, Japan, Malaysia, Australia

Showroom Location

None

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Marketing Type

New Product 2020

Warranty of core components

1 Year

Core Components

PLC, Engine

Number of axes

6

Maximum wrist payload (Kg)

3 kg

Maximum horizontal reach (mm)

630 mm

Repeatability (mm)

0.02 mm

Tool coupling flange

ISO 9409 - 1 - A 40

Robot weight (Kg)

30 kg

Protection class

IP54

Mounting position

Floor / Ceiling / Sloping / Wall

Torque on axis 6 (Nm)

4.41 Nm

Stroke (Speed) on Axis 6

+/- 2700° (900°/s)

Packing & Delivery

Pick And Place Robot Arm Of Racer-3-0.63 For The Machine Maintenance And Cosmetic Seal With Cobot Robot packing with fumigation wooden frame, WG:1705KG Controller and other parts packing with brown box, WG:75KG Total WG:1780KG(>VG)

Company Profile

00:00

02:00


Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.
