OMRON Industrial Robots Hornet 565 Parallel robot ideal for use in the food and beverage, pharmaceutical, and healthcare industries
• Programmable through ACE software and eV+ language, or through the familiar IEC 61131-3 when using ePLC Connect
• The amplifier and controller built into the robot reduces the number of cables
• Tracks up to a conveyor speed of 1.4 m/s
• Designed with a high payload to support multi-hand (multi-picking)
• Supports fast Pick & Place on a fast conveyor
• Helps reduce mounting cost and robot vibration

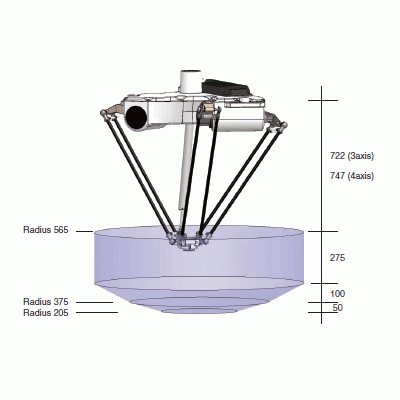

• Maximum working diameter 1,130 mm
• Working height 425 mm
• Maximum payload 8 kg
• Weight 52 kg
Product Description
Specification
Product Name | Hornet 565 4 Axis |
Weight (kg) | 52 |
Mounting | Inverted |
Max Payload (kg) | 3 |
Reach (mm) | 1130 |
Packing & Delivery
ONE OOMRON Industrial Robots Hornet 565 Parallel robot ideal for use in the food and beverage, pharmaceutical, and healthcare industries packing with fumigation wooden frame.
