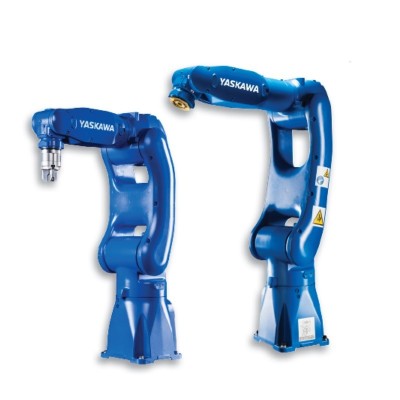

GP7 6-axis industrial robot arm with highest playload and speed for material handing in industrial robot

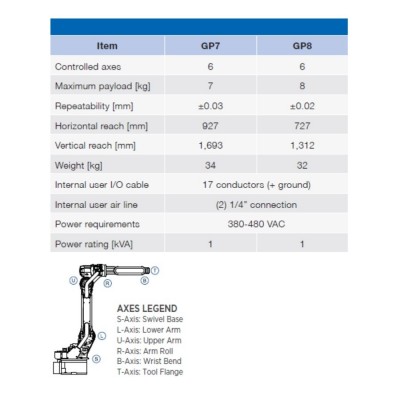

| Product Name | GP7/GP8 high-speed assembly and handling 6-axis industrial robot arm with YRC1000 controller for Yaskawa |
| Model | GP7/GP8 |
| Application | Assembly, Material Handling, Part Transfer, Pick and Pack, Pick and Place, |
| Maximum reach | 927mm/727mm |
| Maximum payload | 7kg/8kg |
| Pose repeatability (ISO 9283) | ± 0.03 mm/0.02mm |
| Number of axes | 6 |
| Mounting position | Floor, Wall, Ceiling |
| Weight | 35 kg |
| Protection rating | IP65-IP67 |
| Controller | YRC1000 controller/ YRC1000micro Controller |
| Motion range | |
| S | 170° to -170° |
| L | 145° to -65° |
| U | 255° tp -116° |
| R | 190° to -190° |
| B | 135° to -135° |
| T | 360° to -360°
|
