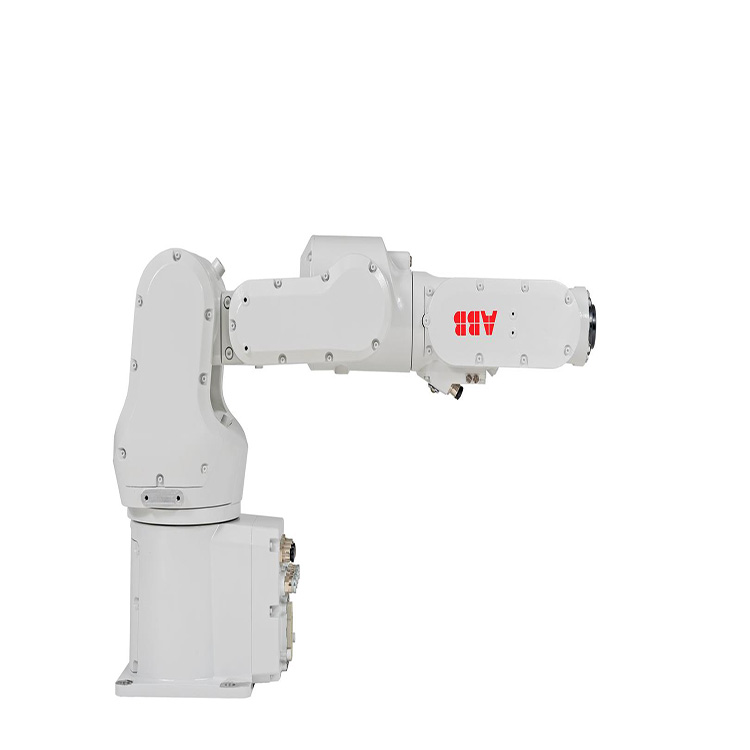

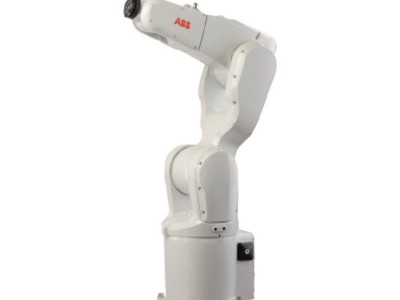

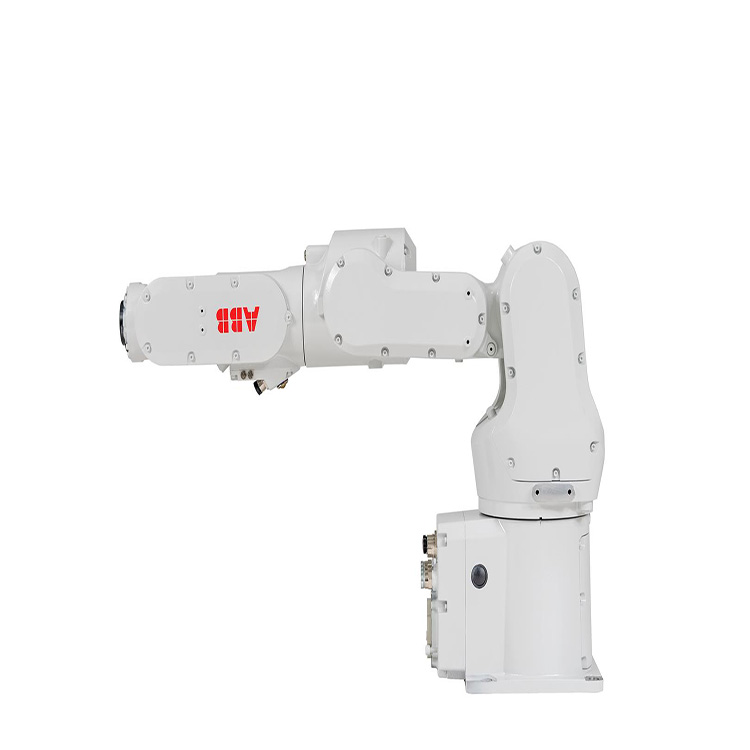

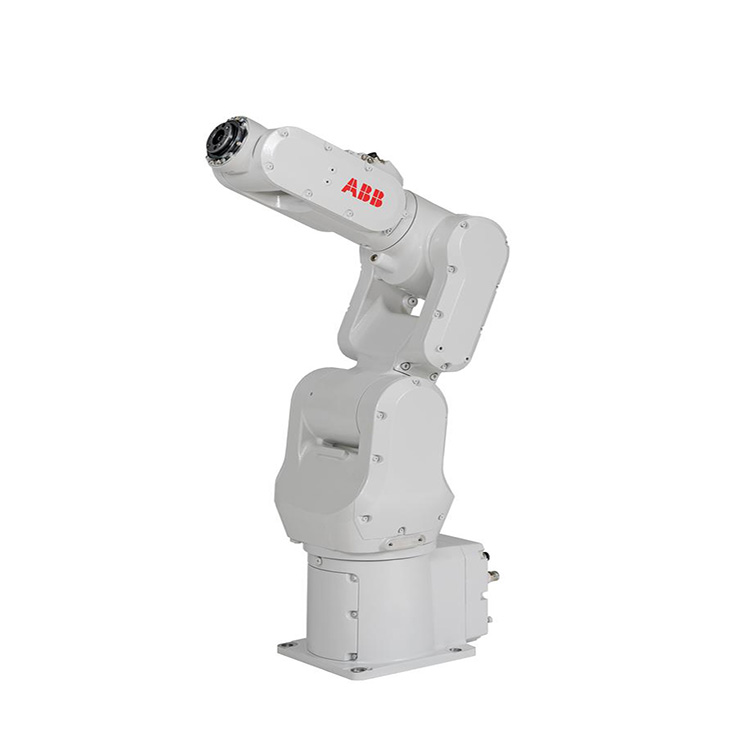

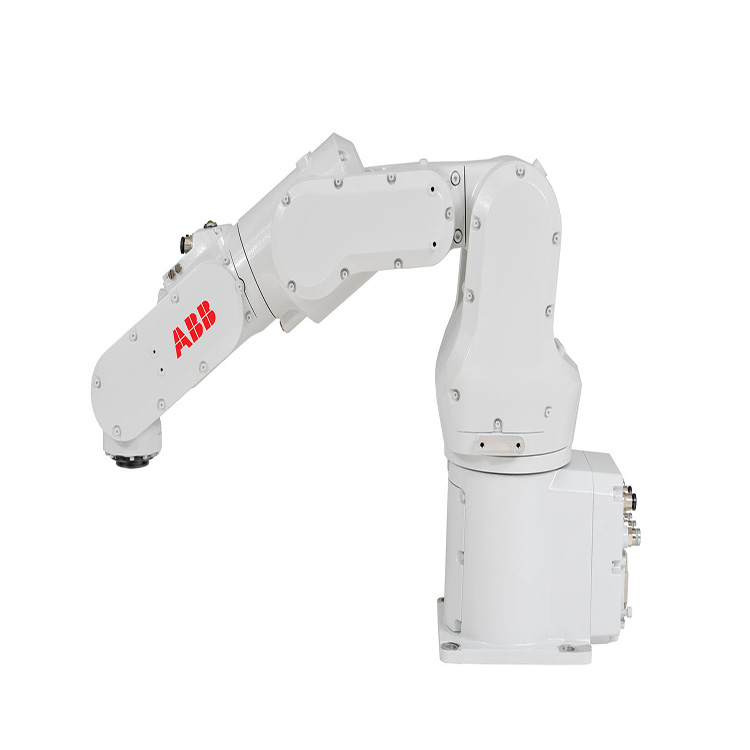

ABB IRB 1200 small industrial robot arm 6 axis robot arm with compact design for machine tending robot arm
Main Specifications
Model:IRB 1200

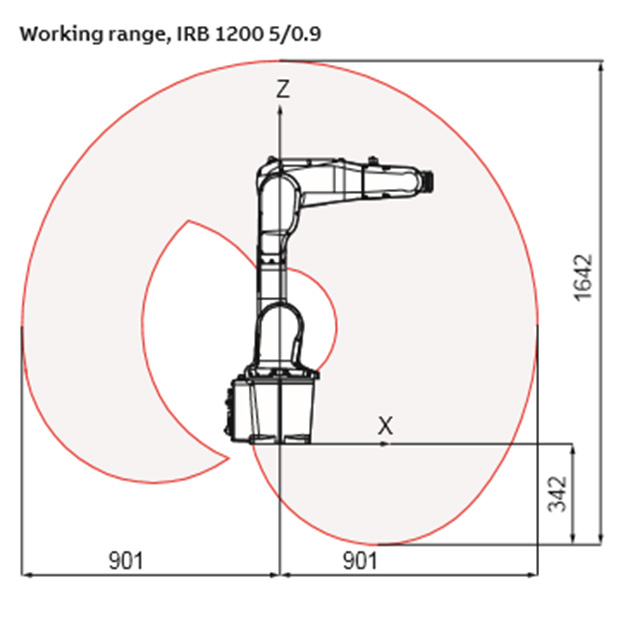

Maximum reach:900 mm
Maximum payload:5kg
Pose repeatabilit: ± 0.025mm
Number of axes :6
Weight:21kg
Protection rating:Standard robot (IP40) or IP67
Product Description
| Production Name | ABB robot arm 6 axis IRB 1200 |
| Model | IRB 1100-5/0.9 |
| Application | machine tending |
| Maximum reach | 900 mm |
| Maximum payload | 5 kg |
| Pose repeatability (ISO 9283) | ± 0.025 mm |
| Number of axis | 6 |
| Mounting position | any angle |
| Footprint | |
| Weight | 54 kg |
| Protection rating | Standard robot (IP40) or IP67 |

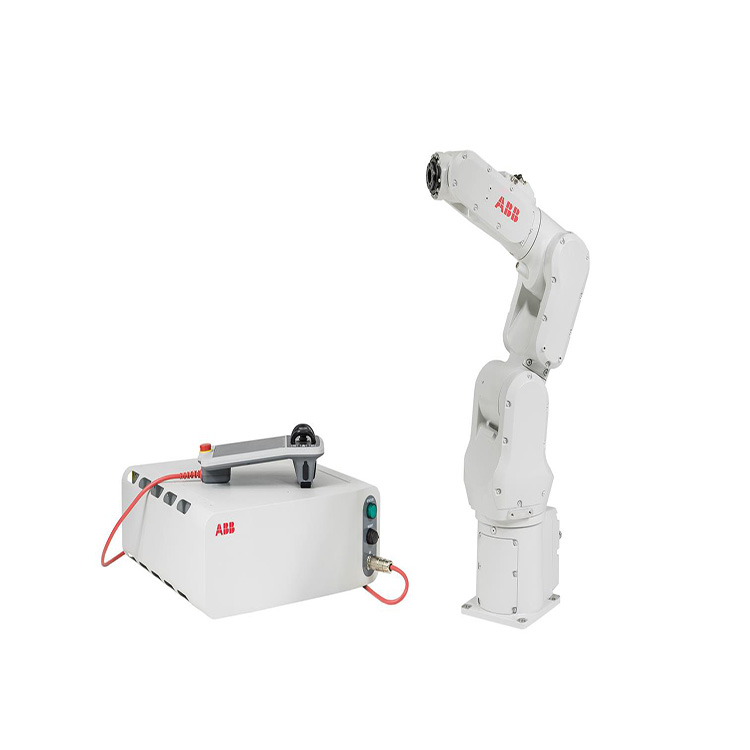

| Controller | IRC5 Compact/IRC5 Single Cabinet |
| Motion range | |
| A1 | 170° to -170° |
| A2 | 135° to -100° |
| A3 | 70° to -200° |
| A4 | 270° to -270° |
| A5 | 130° to -130° |
| A6 | 400° to -400° |
