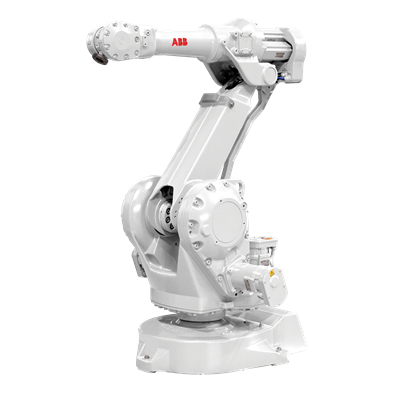

ABB IRB 2400 industrial robotic 6 axis arm applying as cnc milling robot arm humanoid robotic equipments
Main Specifications
Model:IRB 2400-10/1.55
Maximum reach:1550 mm
Maximum payload:12 kg
Pose repeatabilit: ± 0.03mm
Number of axes :6
Weight:380 kg
Protection rating:IP67
Product Description
| Production Name | ABB IRB 2400 Robotic arm |
| Model | IRB 2400-12/1.55 |
| Application | grinding and polishing robot arm |
| Maximum reach | 1550 mm |
| Maximum payload | 12kg |
| Pose repeatability (ISO 9283) | ± 0.03 mm |
| Number of axes | 6 |
| Mounting position | Floor mounted and inverted mounted |
| Footprint | 723mm x 660mm |
| Weight | 380 kg |
| Protection rating | IP67 |
| Controller | IRC5 Single cabinet |

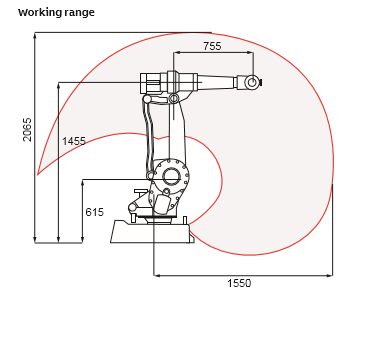

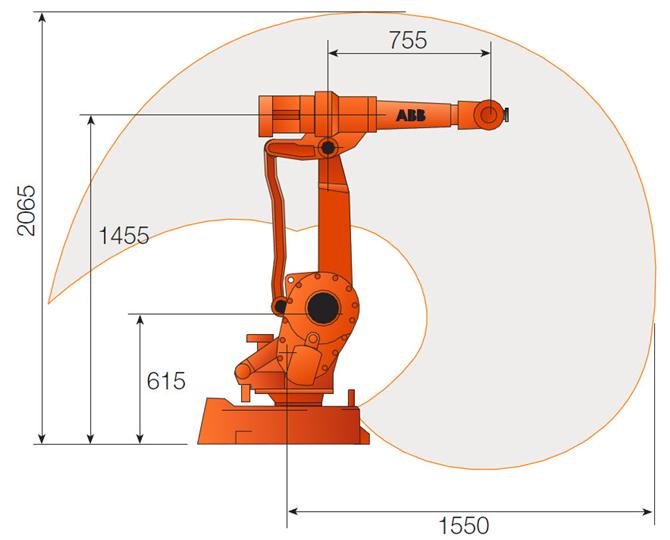

| Motion range | |
| A1 | + 180° to - 180° |
| A2 | + 110° to - 100° |
| A3 | + 65° to - 60° |
| A4 | + 200° to - 200° Optional: Unlimited |
| A5 | + 120° to - 120° |
| A6 | + 400° to - 400° Max. rev: +250° to -250° |
Detailed Images
Our Services
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
