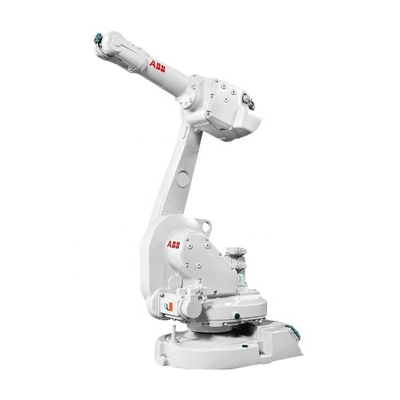

robot arm 6 axis ABB IRB 1600 also sells robot arm parts application as pick and place robot
Main Specifications
Model:IRB 1600
Maximum reach:1450 mm
Maximum payload:10kg
Pose repeatabilit: ± 0.05 mm
Number of axes :6
Weight:250kg
Protection rating:Standard IP54 Option FoundryPlus 2 (IP67)
Product Description
| Production Name | ABB IRB 1600 6 axis cnc welding robot |
| Model | IRB 1600-10/1.45 |
| Application | Cnc Welding robot |
| Maximum reach | 1450 mm |
| Maximum payload | 10 kg |
| Pose repeatability (ISO 9283) | ± 0.05 mm |
| Number of axis | 6 |
| Mounting position | Floor, wall, shelf, tilted, inverted |
| Footprint | |
| Weight | 250 kg |
| Protection rating | Standard IP54 Option FoundryPlus 2 (IP67) |
| Controller | IRC5 Single Cabinet/IRC5 Compact |
| Motion range | |
| A1 | 180° to -180° |
| A2 | +150° to -90° |
| A3 | +65° to -245° |
| A4 | +200° to -200° |
| A5 | +115° to -115° |
| A6 | 400° to -400° |

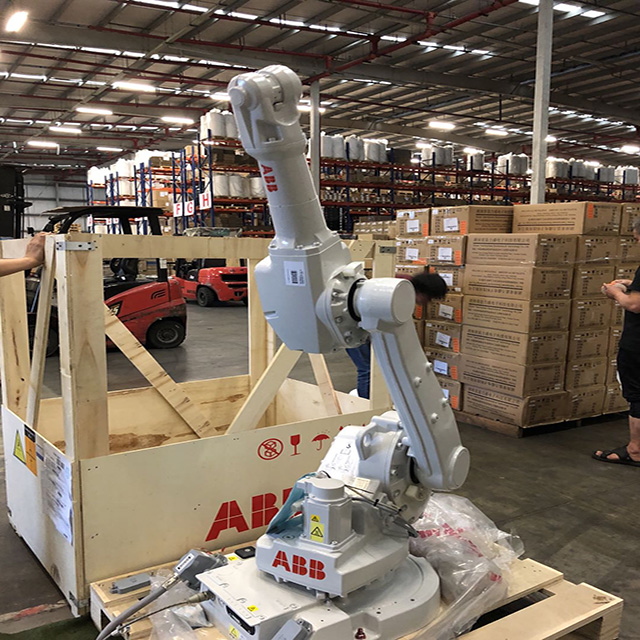

Detailed Images
Our Services
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
