Performance Specification
Display size
10.4" TFT
Display area
211.2(W)×158.4(H)
Resolution
800×600 px
Display color
16.77M true color
Visual angle
70/70/60/70(L/R/U/D)
Contrast
500:1
Backlight
LED
Luminance
350cd/m²
LCD life
More than 30000 hours
Touch panel
4-wire precision resistance network (surface hardness 4H)
CPU
ARM RISC 32Bit 800MHz
Memory
128MB NAND flash + 128MB DDR3 RAM
RTC
Built-in RTC
External storage
1USB Host + 1SD Card
Printer port
USB Host/Serial port
Ethernet
10/100M adaptable Ethernet interface
Program download
USB Slave(Type B)/U Disk/Ethernet

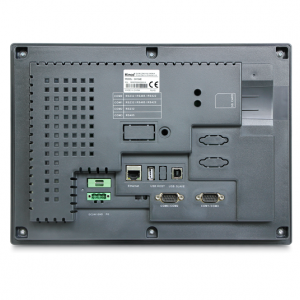

Communication
COM0: RS232/RS485/RS422. COM1: RS232/RS485/RS422. COM2: RS232. COM3: RS485
Serial port isolated
Built-in
Electrical Specification
Input range
DC12V~DC28V, inbuilt isolated power supply
Power
8W@24VDC
Allowable loss of power
<3ms
Insulation resistance
Over 50MΩ@500V DC
Hi-pot test
500V AC 1 minute
Structure specification
Shell material
Engineering plastics
Shape size
310×230×56 (mm)
Cutout size
299×219 (mm)
Weight
1.715Kg
Environmental Specification
Working temperature
-10~55℃
Working humidity
10~90%RH (non-condensing)
Storage temperature
-20~60℃
Storage humidity
10~90%RH (non-condensing)
Sine vibration test
10~500Hz, 30m/s², X,Y,Z direction/hour
Cooling mode
Natural air cooling
Product Certification
Panel protection grade
Conforming to IP65 certification (4208-93)
CE certification
CE: EN61000-6-4:2007+A1:2011，EN61000-6-2:2005
Software
Configuration software
Kinco DTools V3.3 and above version

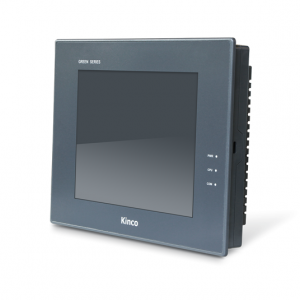

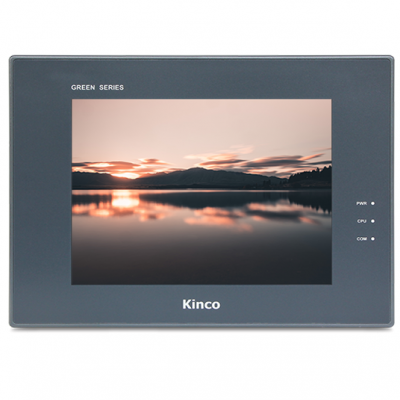

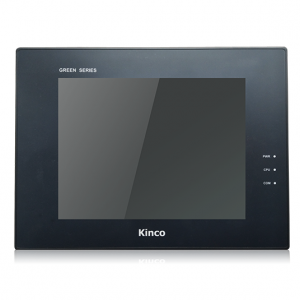

Notes: GH104E is a replacement model for MT4523TE.
The old version of the project can be opened directly by DTools software and downloaded to the new HMI.
