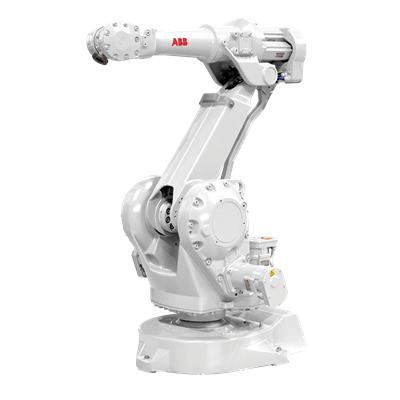

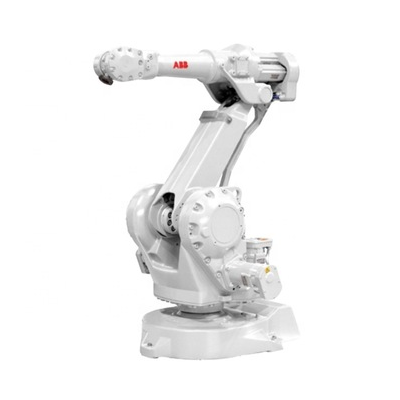

ABB IRB 2400 Robotic arm maxinize efficiency industrial robot arm with 6 axis and master in polishing and grinding
Main Specifications
Model:IRB 2400-16/1.55
Maximum reach:1550 mm
Maximum payload:16 kg
Pose repeatabilit: ± 0.03mm
Number of axes :6
Weight:380 kg
Protection rating:IP67
Product Description
| Production Name | ABB IRB 2400 Robotic arm |
| Model | IRB 2400-16/1.55 |
| Application | grinding and polishing robot arm |
| Maximum reach | 1550 mm |
| Maximum payload | 16kg |
| Pose repeatability (ISO 9283) | ± 0.03 mm |
| Number of axes | 6 |
| Mounting position | Floor mounted and inverted mounted |
| Footprint | 723mm x 660mm |
| Weight | 380 kg |
| Protection rating | IP67 |
| Controller | IRC5 Single cabinet |

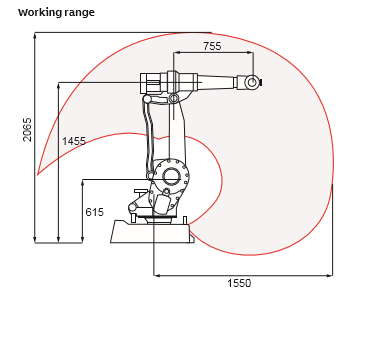

| Motion range | |
| A1 | + 180° to - 180° |
| A2 | + 110° to - 100° |
| A3 | + 65° to - 60° |
| A4 | + 200° to - 200° Optional: Unlimited |
| A5 | + 120° to - 120° |
| A6 | + 400° to - 400° Max. rev: +250° to -250° |
Detailed Images
