YF003N Robot SPECIFICATIONS
| YF003N SPECIFICATIONS | |||
| Type | Parallel link Type | ||
|---|---|---|---|
| Degrees of Freedom (Axes) | 4 | ||
| Payload (kg) | 3 | ||
| Positional Repeatability (mm) *1 | ± 0.1 | ||

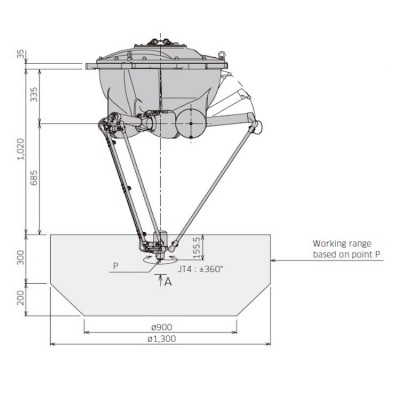

| Motion Range (mm) | ø1,300 × H500 | ||
| Mass (kg) | 145 | ||
| Mounting | Ceiling | ||
| Installation Environment | Ambient Temperature (°C) | 0 - 45 | |
| Relative Humidity (%) | 35 - 85 (No dew, nor frost allowed) | ||
| Controller / Power Requirements (kVA) | America | E97 / 5 | |
| Europe | E91 / 5 | ||
| Japan & Asia | E94 / 5 | ||
| Protection | Standard | IP65 equivalent | |
| Option | IP67 equivalent | ||
| Angular Repeatability (°) | ± 0.1 | ||
| Cycle Time (Payload) *2 | 0.27s (1 kg) 0.45s (3 kg) | ||
✽1: The figure conforms to ISO9283.
✽2: Motion pattern (25 mm up, 305 mm horizontal, 25 mm down in a to-and-fro motion)
