MX500N Robot
INNOVATIVE HIGH WRIST TORQUE ROBOT
The MX500N robot has a maximum payload capacity of 500 kg and reach of 2,540 mm with one of the highest available wrist torque in the industry, which provides the ability to significantly offset heavy payloads from the tool mounting flange. Along with powerful motors, Kawasaki's original link design for JT3 (arm up-down) gives the robot the power to lift heavy loads without the use of bulky and limiting counterweights, maximizing the robot’s motion range and allowing for a compact footprint.
MX500N Overview:
Payload 500 kg
Max.Reach 2,540 mm
Applications:
Assembly
Machine Tending
Material Handling
Material Removal
Sealing / Dispensing
MX500N SPECIFICATIONS
| MX500N SPECIFICATIONS | |||
| Type | Articulated Robot | ||
|---|---|---|---|
| Degrees of Freedom (axes) | 6 | ||
| Payload (kg) | 500 | ||
| Max. Reach (mm) | 2,540 | ||
| Positional Repeatability (mm) ✽1 | ±0.1 | ||

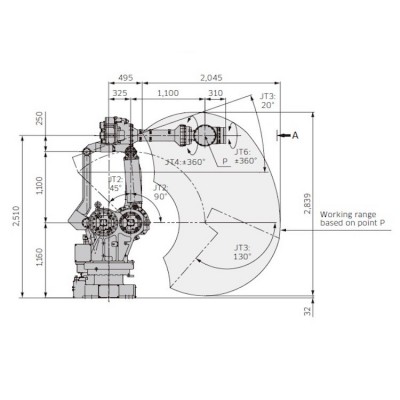

| Motion Range (°) | Arm Rotation (JT1) | ±180 | |
| Arm Out-in (JT2) | +90 - −45 | ||
| Arm Up-down (JT3) | +20 - −130 | ||
| Wrist Swivel (JT4) | ±360 | ||
| Wrist Bend (JT5) | ±110 | ||
| Wrist Twist (JT6) | ±360 | ||
| Max. Speed (°/s) | Arm Rotation (JT1) | 80 | |
| Arm Out-in (JT2) | 70 | ||
| Arm Up-down (JT3) | 70 | ||
| Wrist Swivel (JT4) | 80 | ||
| Wrist Bend (JT5) | 80 | ||
| Wrist Twist (JT6) | 120 | ||
| Allowable Moment (N•m) | Wrist Swivel (JT4) | 3,920 | |
| Wrist Bend (JT5) | 3,920 | ||
| Wrist Twist (JT6) | 1,960 | ||
| Allowable Moment of Inertia (kg•m2) | Wrist Swivel (JT4) | 400 | |
| Wrist Bend (JT5) | 400 | ||
| Wrist Twist (JT6) | 250 | ||
| Mass (kg) | 2,750 | ||

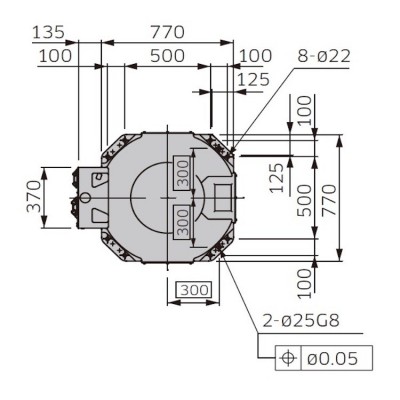

| Mounting | Floor | ||
| Installation Environment | Ambient Temperature (°C) | 0 - 45 | |
| Relative Humidity (%) | 35 - 85 (No dew, nor frost allowed) | ||
| Controller / Power Requirements (kVA) | E04 / 12 | ||
✽1: The figure conforms to ISO9283.
