RS020N Robot
The R series Robots are setting the benchmark for all small to medium duty industrial robots. The compact design, along with industry leading speed, reach and work range make the R series Robots ideal for a wide range of applications throughout a multitude of diverse industries. RS020N Overview: Payload 20 kg Assembly Machine Tending Material Handling Material Removal Sealing / Dispensing ✽1: The figure conforms to ISO9283.HIGH-SPEED, HIGH-PERFORMANCE ROBOT

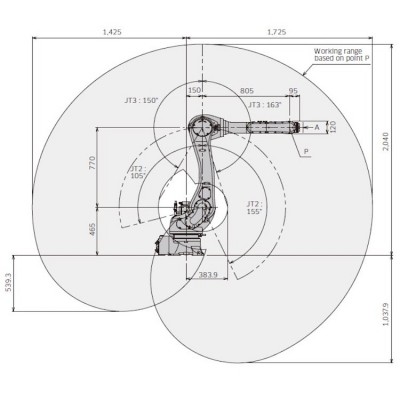

Max.Reach 1,725 mmApplications:
RS020N SPECIFICATIONS
RS020N SPECIFICATIONS Type Articulated Robot Degrees of Freedom (axes) 6 Payload (kg) 20 Max. Reach (mm) 1,725 Positional Repeatability (mm) ✽1 ±0.04 Motion Range (°) Arm Rotation (JT1) ±180 Arm Out-in (JT2) +155 - −105 Arm Up-down (JT3) +150 - −163 Wrist Swivel (JT4) ±270 Wrist Bend (JT5) ±145 Wrist Twist (JT6) ±360 Max. Speed (°/s) Arm Rotation (JT1) 190 Arm Out-in (JT2) 205 Arm Up-down (JT3) 210 Wrist Swivel (JT4) 400 Wrist Bend (JT5) 360 Wrist Twist (JT6) 610 Allowable Moment (N•m) Wrist Swivel (JT4) 45 Wrist Bend (JT5) 45 Wrist Twist (JT6) 29 Allowable Moment of Inertia (kg•m2) Wrist Swivel (JT4) 0.9 Wrist Bend (JT5) 0.9 Wrist Twist (JT6) 0.3 Mass (kg) 230 Mounting Floor, Ceiling Installation Environment Ambient Temperature (°C) 0 - 45 Relative Humidity (%) 35 - 85 (No dew, nor frost allowed) Controller / Power Requirements (kVA) E01 / 5.6 Protection Wrist : IP67 equivalent / base axis : IP65 equivalent
FAQ
Q.How Long will You Need before Delivery? A:We have many common models in stock, so that wecan deliver the goods very soon(less than 3 days).
Q.What is Your Payment Term?
A:Normally T/T 30% in advance, balance to be paidbefore delivery, We also support the trade assurance,OlA.
Q:What is Trade Assurance? A:Trade Assurance is a free service by Alibaba.comthat's designed to help create trust between buyers andsuppliers.Trade Assurance helps buyers in the event ofshipping and quality-related dispute.
Q:Does Trade Assurance Charge Fees? A:No.Trade Assurance is free for both buyers andsuppliers.
Q:What Kind of Trade Terms Can You Do?
A:EX-WORKS,FOB,CFR,CIF,etc.
