ABB IRB 1200 small industrial robot arm 6 axis robot arm with compact design for machine tending robot arm
Main Specifications
Model:IRB 1200
Maximum reach:900 mm
Maximum payload:5kg
Pose repeatabilit: ± 0.025mm
Number of axes :6
Weight:21kg
Protection rating:Standard robot (IP40) or IP67
Product Description
| Production Name | ABB robot arm 6 axis IRB 1200 |
| Model | IRB 1100-5/0.9 |
| Application | machine tending |
| Maximum reach | 900 mm |
| Maximum payload | 5 kg |
| Pose repeatability (ISO 9283) | ± 0.025 mm |
| Number of axis | 6 |
| Mounting position | any angle |
| Footprint | |
| Weight | 54 kg |
| Protection rating | Standard robot (IP40) or IP67 |
| Controller | IRC5 Compact/IRC5 Single Cabinet |
| Motion range | |
| A1 | 170° to -170° |
| A2 | 135° to -100° |
| A3 | 70° to -200° |
| A4 | 270° to -270° |
| A5 | 130° to -130° |
| A6 | 400° to -400° |

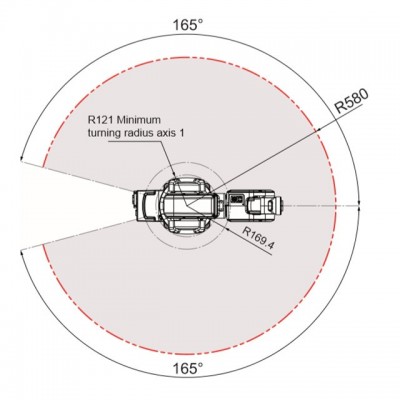

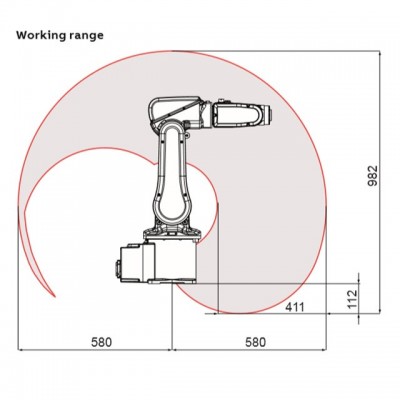

Detailed Images
Our Services
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
