6 axis robot arm ABB IRB 6640 withmany applications as washing and cleaning robot arm mainly industrial robot arm
Main Specifications
Model:IRB 6640
Maximum reach:2550 mm
Maximum payload:235kg
Pose repeatabilit: ± 0.01mm
Number of axes :6
Weight:21kg
Protection rating:Standard IP40. Option IP67
Product Description
| Production Name | ABB robot arm 6 axis IRB 6640 |
| Model | IRB 6640-235/2.55 |
| Application | washing and claening robot arm |
| Maximum reach | 2550 mm |
| Maximum payload | 235 kg |
| Pose repeatability (ISO 9283) | ± 0.05 mm |
| Number of axis | 6 |
| Mounting position | Floor |
| Footprint | IRC5 Single Cabinet |
| Weight | 1310 kg |
| Protection rating | Standard IP40. Option IP67. |
| Controller | |

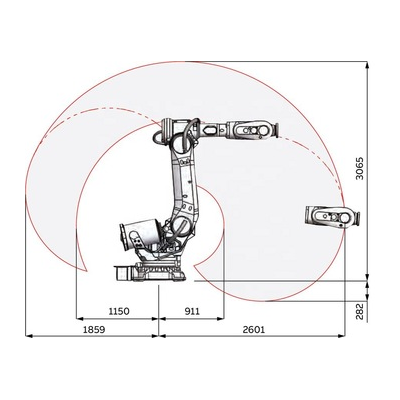

| Motion range | |
| A1 | 170° to -170° |
| A2 | 85° to -65° |
| A3 | 70° to -180° |
| A4 | 300° to -300° |
| A5 | 120° to -120° |
| A6 | 360° to -360° |
Detailed Images
Our Services
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
