Robot Arm Milling Machine 6 Axis Payload 50kg Reach 2239mm HH050 with Hi5a-S60 Controller Milling Robot
Features
High Speed, High accuracy, Large working envelope, High reliability & flexibility

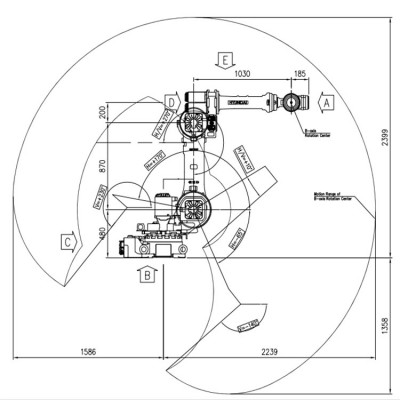

| Max.MotionRange | Main Axes Wrist Axes | Swivel Horizontal Vertical R2 B(Bending) R1(Twisting) | ±180 ° +170 ° ~ -65 ° +180 ° ~ -80 ° ±360 ° ±125 ° ±360 ° |
| Max.Speed | Main Axes Wrist Axes | Swivel Horizontal Vertical R2 B(Bending) R1(Twisting) | 175 °/s 175 °/s 175 °/s 250 °/s 250 °/s 350 °/s |
| AllowableTorque | Wrist Axes | R2 B(Bending) R1(Twisting) | 22 kgf.m 22 kgf.m 15 kgf.m |
