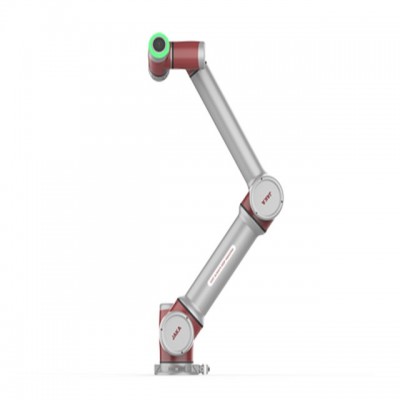

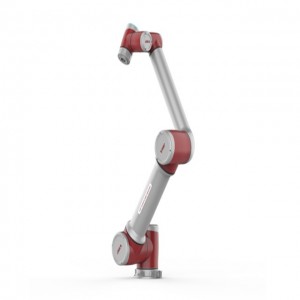

JAKA Zu7 2.0 version 6 axis collaborative robot low cost joint robot integration industrial cobot high payload and design
Main Specifications
Maximum reach:819 mm
Maximum payload:7 kg
Pose repeatability (ISO 9283):± 0.03 mm
Number of axes:6
Mounting position:any angle
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption:350W
Power supply:DC 24V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen
Product Description
| Product Name | 6 axis collaborative robot arm JAKA Zu 3 with 16 digital in/out controller box application on industrial integration cobot |
| Application | 6 axis collaborative robot arm JAKA Zu 3 with 16 digital in/out controller box application on industrial integration cobot mainly apply in high precision handling assembly |
| Model | JAKA Zu 3 |
| Robot Arm | |
| Maximum reach | 626mm |
| Maximum payload | 3 kg |
| Pose repeatability (ISO 9283) | ± 0.03 mm |
| Number of axes | 6 |
| Mounting position | any angle |
| Lifetime | 30000h |
| Weight | 12 kg |
| Protection rating | IP54 |
| Standard | CE, TUV,KSc |
| Power consumption | 350W |
| Material | Aluminum alloy |
| Ambient temperature | 0-50°C |
| Environment humidity | 20-85%(No condensation) |
| Power supply | DC 48V |
| Protocol | CAN bus |
| A1 | ±270° |
| A2 | -85°,+265° |
| A3 | ±175° |
| A4 | -85°,+265° |
| A5 | ±270° |
| A6 | ±270° |
| Controller | |
| Size | 410mm*307mm*235mm |
| Weight | 12Kg |
| Cable length | 6m |
| Colour | silver and red |
| Protocol | Ethernet,Modbus-RTU/TCP |
| Power | 100-240V/AC,50-60HZ |
| Protection rating | IP44 |
| I/O port | 16 in/16 out |
| Teach pendant | |
| Size | 355mm*235mm*54mm |
| Weight | 1.8Kg |
| Screen | 12 inch Resistive LCD touch screen |
| Cable length | 6m |
| Protection rating | IP54 |
| Colour | silver and red |
Detailed Images
Our Services
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
