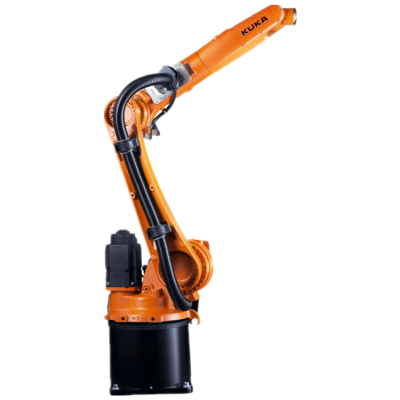

Industrial robot model KR 6 R1820 kuka industrial robot low cost industrial robot
Product Description
| Product Name | Industrial robot model KR 6 R1820 kuka industrial robot low cost industrial robot | ||||||||
| Model | KR 6 R1820 | ||||||||
| Application | Industrial robot model;kuka industrial robot;low cost industrial robot; | ||||||||
| Maximum reach | 1820 mm | ||||||||
| Maximum payload | 6 kg | ||||||||
| Pose repeatability (ISO 9283) | ± 0.04 mm | ||||||||
| Number of axes | 6 | ||||||||
| Mounting position | Floor/ Ceiling/Wall | ||||||||
| Footprint | 333.5 mm x 307 mm | ||||||||
| Weight | approx. 168 kg | ||||||||
| Protection rating | IP54 | ||||||||
| Controller | KR C4 compact | ||||||||
| Teach pendant | KUKA smartPAD | ||||||||

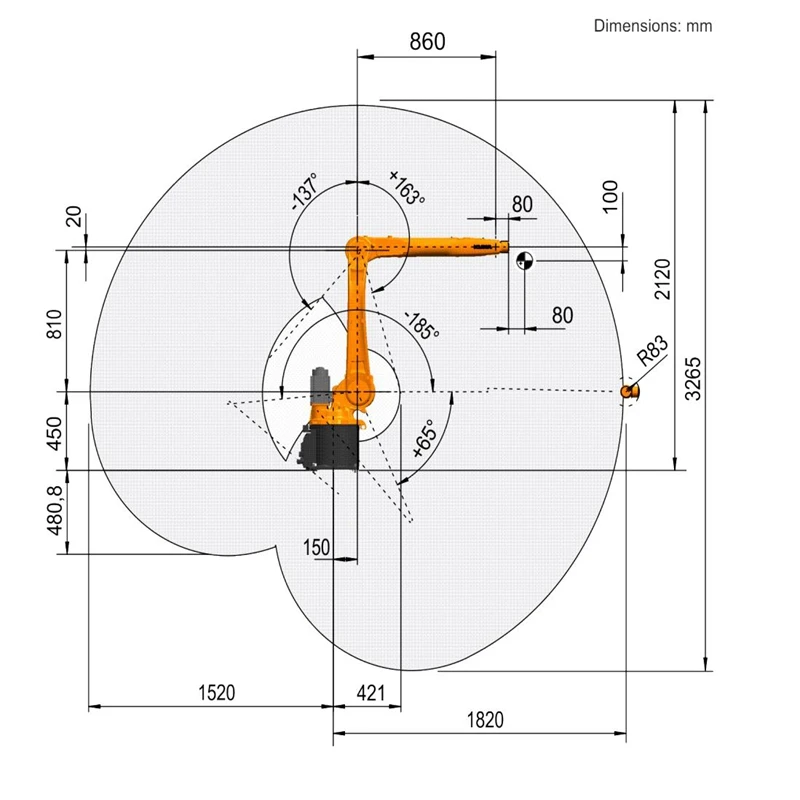

| Motion range | |||||||||
| A1 | ±170° | ||||||||
| A2 | (-180° / 65°) | ||||||||
| A3 | (-137°- 163°) | ||||||||
| A4 | ±185° | ||||||||
| A5 | ±120° | ||||||||
| A6 | ±350° | ||||||||
