• Standard product information

• Family

• HMI

• Series

• GP4000 Series

• Size

• 10"

• Model

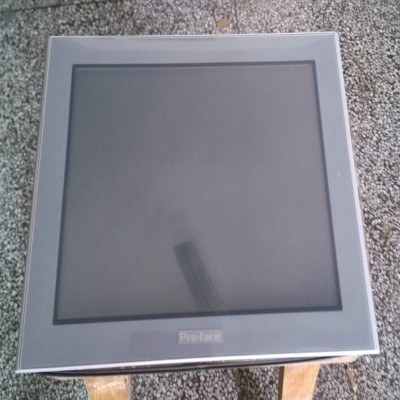

• PFXGP4521TAD

• Global Code

• PFXGP4521TAD

• Product Features

• 10" DC Analog

• Repair Status

• ✔ (Maintenance service is available, able to be maintained.)

• Display specifications

• Display type

• TFT Color LCD

• Display size

• 10.4"

• Resolution

• 640 x 480 pixels (VGA)

• Effective display area

• W211.2 x H158.4 mm [W8.31 x H6.24 in.]

• Display colors

• 65,536 colors (No blink) / 16,384 colors (Blink)

• Backlight

• White LED (Not user replaceable. When replacement is required, contact your local distributor.)

• Backlight service life

• 50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)

• Brightness control

• 16 Levels (Adjusted with touch panel or software)

• Touch panel type

• Resistive Film (analog)

• Touch panel resolution

• 1,024 x 1,024

• Touch panel lifetime

• 1,000,000 times or more

• Language fonts

• Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean, Traditional Chinese, Simplified Chinese, Thai and Cyrillic can be added from the font setting of the screen editor. )

• Character sizes

• Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts

• Font sizes

• Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.*1

• 8 x 8 dots

• 80 char. x 60 rows

• 8 x 16 dots

• 80 char. x 30 rows

• 16 x 16 dots

• 40 char. x 30 rows

• 32 x 32 dots

• 20 char. x 15 rows

• 1Other font sizes can be set up with the Editor software.

• Electrical specifications

• Rated input voltage

• 24 Vdc

• Input voltage limits

• 19.2 to 28.8 Vdc

• Allowable voltage drop

• 10 ms or less

• Power consumption

• 24 W or less

• In-rush current

• 30 A or less

• Noise immunity

• Noise Voltage : 1,000 Vp-p
  Pulse Duration : 1 µs
  Rise Time : 1 ns
  (via noise simulator)

• Voltage endurance

• 1,000 Vac, 20 mA for 1 minute (between power terminal and FG terminals)

• Insulation resistance

• 500 Vdc, 10 MΩ or more (between power terminal and FG terminals)

• Environmental specifications

• International safety standards

•

• Surrounding air temperature

• 0 to 55 °C [32 to 131 °F]*2

• Storage temperature

• -20 to +60 °C [-4 to 140 °F]

• Ambient humidity

• 10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)

• Storage humidity

• 10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)

• Dust

• 0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)

• Pollution degree

• For use in Pollution Degree 2 environment

• Corrosive gases

• Free of corrosive gases

• Air pressure (altitude range)

• 800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)

• Vibration resistance

• IEC/EN 61131-2 compliant
  5 to 9 Hz single amplitude 3.5 mm [0.14 in.]
  9 to 150 Hz fixed acceleration: 9.8 m/s2
  X, Y, Z directions for 10 cycles (approx. 100 min.)

• Concussion resistance

• IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times

• Electrostatic discharge immunity

• 6 kV（IEC/EN61000-4-2 Level 3）

Panel cut-out dimensions

External dimensions with cable
