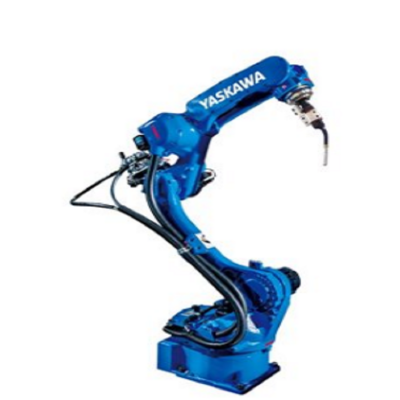

YASKAWA AR1440

AR1440 6-axis automatic welding robot and fast and accurate arc welding robot with YRC1000 Robot Controller

Main Specifications:

Maximum reach:1440 mm
Maximum payload:12 kg
Number of axes:6
Protection rating:IP40

Key Benefits
1.Increased payload, axis speeds and wrist inertia improve throughput and quality
2.Streamlined arm design reduces interference
3.Expanded wrist range improvesapplication flexibility
4.Single robot-to-controller cableconnection enables fast setup
5.Proven torch cable reliability;backed by industry's first two-year torch cable warranty.

Features

. Slim, fast, six-axis AR1 440 welding robot achieves unrivaled welding performance and productivity.
. Axis composite speed increased by 11 % over previous model.
· 12 kg payload supports a wide variety of motorized torches andsensors.
· Slim profile design allows close proximity placement of robots for high-density work cells.
. Contoured arm allows easy access to parts in tight spots and avoids potential interference with fixtures.
· Symmetric wrist profile, with ample range, provides equal torch access to both sides of part.
. High allowable moment and inertia ratings provide wrist rigidity and consistent weld quality.
.50mm thru-hole for torch cabling, hoses and sensor wires reducescable interference and wear.
. Minimal U-axis cable protrusion and S-axis internal cable managementprolongs cable life and maximizespart access.
. Optimized feeder mounting area on arm reduces equipment interference.
. Single power and control cable reduces wiring time and increases work efficiency.
. New robot harness designfor improved diagnostics andmaintenance.
. Home position data can be saved without battery connection for easy maintenance.
. Variety of advanced, exclusiveprogramming functions maximizeweld quality and speed.
. Floor-mounted model is standard. Wall-, tilt- or ceiling-mounted versions are available.
. Compact YRC controller utilizes the lightweight standard teach pendant with intuitive programing.

Product Description

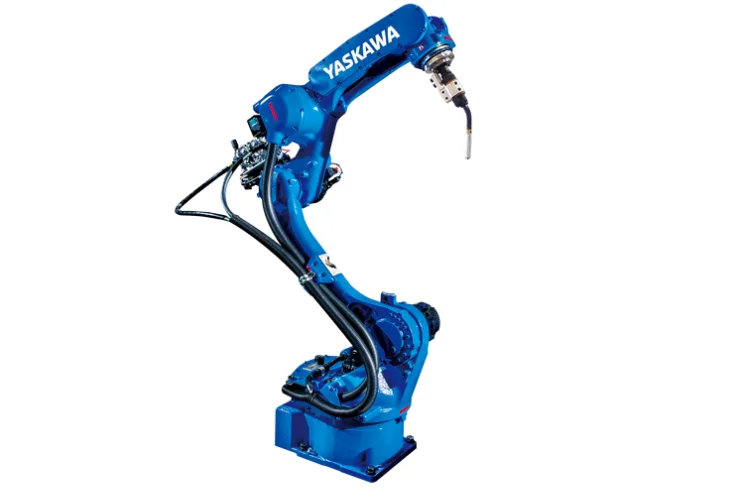

Detailed Images
