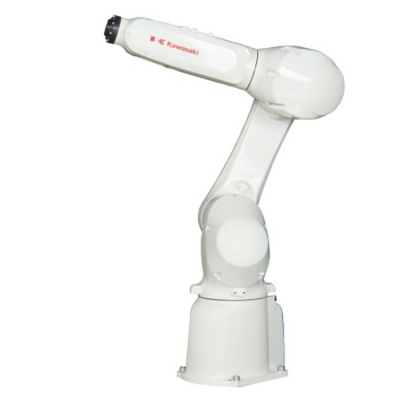

RS007N Robot
HIGH-SPEED, HIGH-PERFORMANCE ROBOT
The R series robots are setting the benchmark for all small to medium duty industrial robots. The compact design, along with industry leading speed, reach and work range make the R series robots ideal for a wide range of applications throughout a multitude of diverse industries.
Payload 7 kg Assembly Machine Tending Material Handling Material Removal Sealing / DispensingRS007N Overview:
Max.Reach 730 mmApplications:
RS007N SPECIFICATIONS
| RS007N SPECIFICATIONS | |||
| Type | Articulated Robot | ||
|---|---|---|---|
| Degrees of Freedom (axes) | 6 | ||
| Payload (kg) | 7 | ||
| Max. Reach (mm) | 730 | ||
| Positional Repeatability (mm) ✽1 | ±0.02 | ||
| Motion Range (°) | Arm Rotation (JT1) | ±180 | |
| Arm Out-in (JT2) | ±135 | ||
| Arm Up-down (JT3) | ±155 | ||
| Wrist Swivel (JT4) | ±200 | ||
| Wrist Bend (JT5) | ±125 | ||
| Wrist Twist (JT6) | ±360 | ||
| Max. Speed (°/s) | Arm Rotation (JT1) | 470 | |
| Arm Out-in (JT2) | 380 | ||
| Arm Up-down (JT3) | 520 | ||
| Wrist Swivel (JT4) | 550 | ||
| Wrist Bend (JT5) | 550 | ||
| Wrist Twist (JT6) | 1,000 | ||
| Allowable Moment (N•m) | Wrist Swivel (JT4) | 17 | |
| Wrist Bend (JT5) | 17 | ||
| Wrist Twist (JT6) | 10 | ||
| Allowable Moment of Inertia (kg•m2) | Wrist Swivel (JT4) | 0.5 | |
| Wrist Bend (JT5) | 0.5 | ||
| Wrist Twist (JT6) | 0.2 | ||
| Mass (kg) | 35 | ||
| Mounting | Floor, Ceiling | ||
| Installation Environment | Ambient Temperature (°C) | 0 - 45 | |
| Relative Humidity (%) | 35 - 85 (No dew, nor frost allowed) | ||
| Controller / Power Requirements (kVA) | F60 / 2.0 | ||
| Protection | Wrist : IP67 equivalent / base axis : IP65 equivalent | ||
✽1: The figure conforms to ISO9283.
FAQ
Q.How Long will You Need before Delivery? A:We have many common models in stock, so that wecan deliver the goods very soon(less than 3 days).
Q.What is Your Payment Term?
A:Normally T/T 30% in advance, balance to be paidbefore delivery, We also support the trade assurance,OlA.
Q:What is Trade Assurance? A:Trade Assurance is a free service by Alibaba.comthat's designed to help create trust between buyers andsuppliers.Trade Assurance helps buyers in the event ofshipping and quality-related dispute.
Q:Does Trade Assurance Charge Fees? A:No.Trade Assurance is free for both buyers andsuppliers.
Q:What Kind of Trade Terms Can You Do?
A:EX-WORKS,FOB,CFR,CIF,etc.
