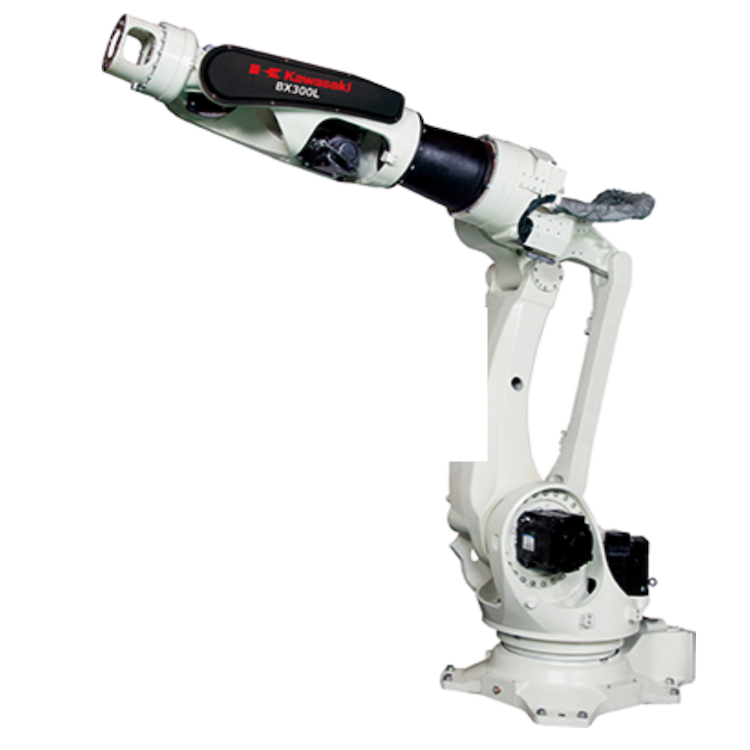

BX300L Robot
OPTIMIZED SPOT WELDING ROBOT
The BX300L high-speed spot welding robot features a hollow wrist for housing cables and hoses, a longer reach with wide motion range, and the highest payload capacity of the B series Robots.
BX300L Robot Overview:
Payload 300 kg
Axes 6
Reach 2,812 mm
Repeatability ±0.07 mm
Applications:
Assembly
Friction Spot Joining
Machine Tending
Material Handling
Material Removal
Sealing / Dispensing
Spot Welding
BX300L Robot SPECIFICATIONS
| BX300L SPECIFICATIONS | |||
| Type | Articulated Robot | ||
|---|---|---|---|
| Degrees of Freedom (axes) | 6 | ||
| Payload (kg) | 300 | ||
| Max. Reach (mm) | 2,812 | ||
| Positional Repeatability (mm) ✽1 | ±0.07 | ||

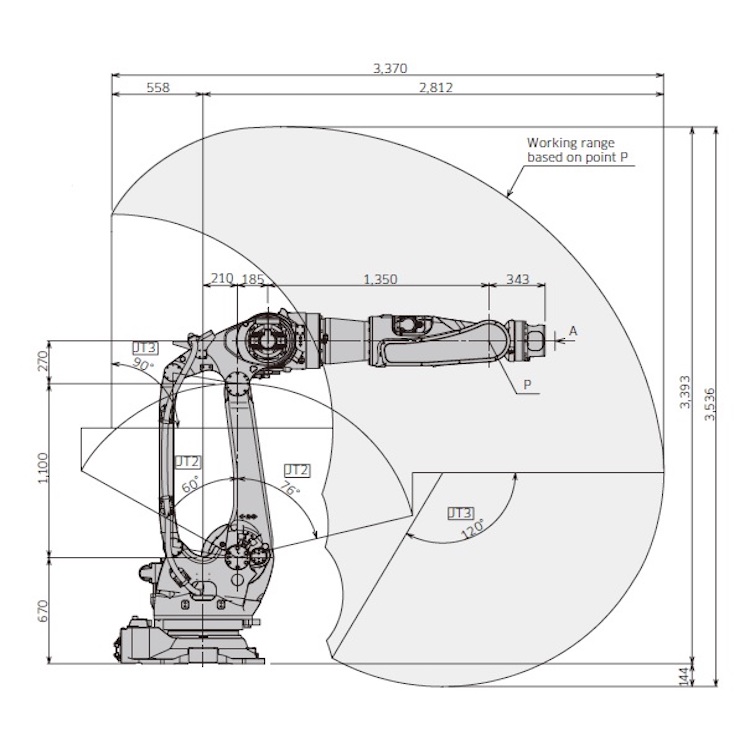

| Motion Range (°) | Arm Rotation (JT1) | ±180 | |
| Arm Out-in (JT2) | +76 - −60 | ||
| Arm Up-down (JT3) | +90 - −120 | ||
| Wrist Swivel (JT4) | ±210 | ||
| Wrist Bend (JT5) | ±125 | ||
| Wrist Twist (JT6) | ±210 | ||
| Max. Speed (°/s) | Arm Rotation (JT1) | 125 | |
| Arm Out-in (JT2) | 102 | ||
| Arm Up-down (JT3) | 85 | ||
| Wrist Swivel (JT4) | 105 | ||
| Wrist Bend (JT5) | 110 | ||
| Wrist Twist (JT6) | 180 | ||
| Allowable Moment (N•m) | Wrist Swivel (JT4) | 2,300 | |
| Wrist Bend (JT5) | 2,300 | ||
| Wrist Twist (JT6) | 1,000 | ||
| Allowable Moment of Inertia (kg•m2) | Wrist Swivel (JT4) | 240 | |
| Wrist Bend (JT5) | 240 | ||
| Wrist Twist (JT6) | 200 | ||
| Mass (kg) | 1,460 | ||

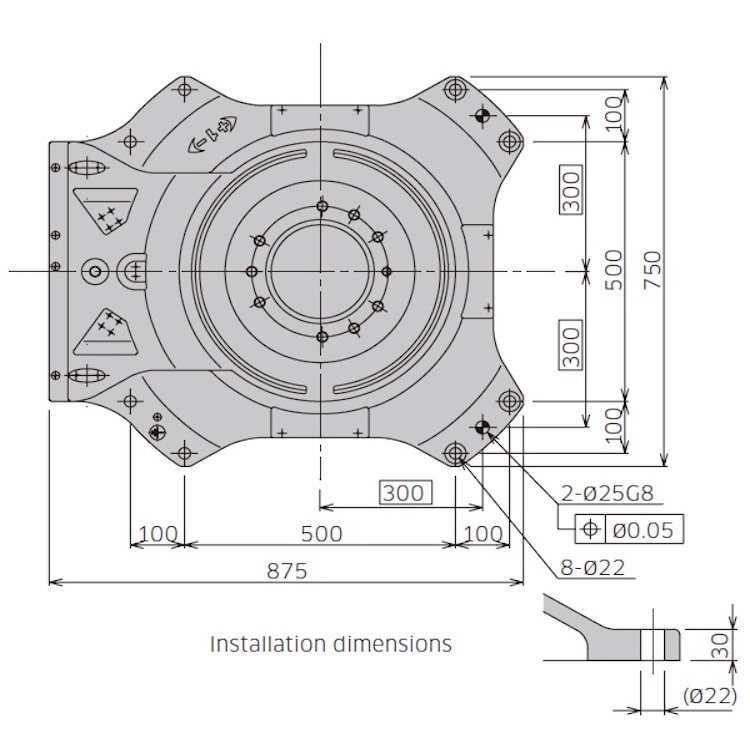

| Mounting | Floor | ||
| Installation Environment | Ambient Temperature (°C) | 0 - 45 | |
| Relative Humidity (%) | 35 - 85 (No dew, nor frost allowed) | ||
| Controller / Power Requirements (kVA) | America | E02 / 7.5 | |
| Europe | E02 / 7.5 | ||
| Japan & Asia | E02 / 7.5 | ||
| Protection | Wrist : IP67 equivalent / base axis : IP54 equivalent | ||
✽1: The figure conforms to ISO9283.
FAQ
Q.How Long will You Need before Delivery? A:We have many common models in stock, so that wecan deliver the goods very soon(less than 3 days).
Q.What is Your Payment Term?
A:Normally T/T 30% in advance, balance to be paidbefore delivery, We also support the trade assurance,OlA.
Q:What is Trade Assurance? A:Trade Assurance is a free service by Alibaba.comthat's designed to help create trust between buyers andsuppliers.Trade Assurance helps buyers in the event ofshipping and quality-related dispute.
Q:Does Trade Assurance Charge Fees? A:No.Trade Assurance is free for both buyers andsuppliers.
Q:What Kind of Trade Terms Can You Do?
A:EX-WORKS,FOB,CFR,CIF,etc.
