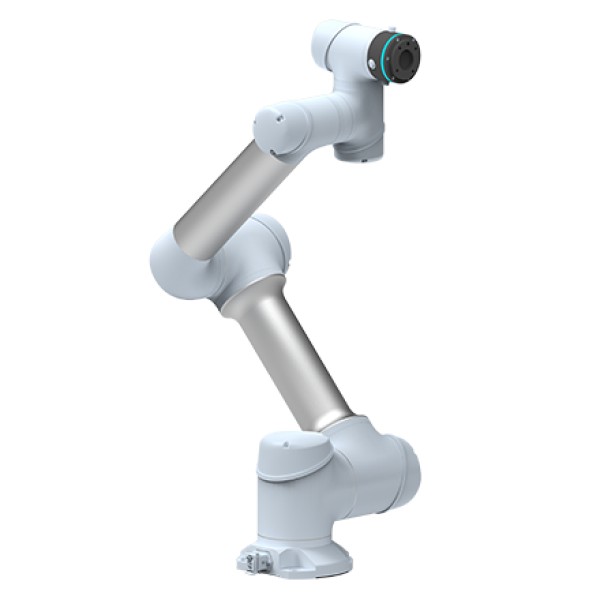

DUCO GCR3-618 3kg 6-Axis Collaborative Robot

Compact Collaborative Performance

The DUCO GCR3-618 is a six-axis collaborative robot designed for precision tasks where space is limited. It offers a 3 kg rated payload, 618 mm effective reach, and ±0.02 mm repeatability, supporting consistent handling, placement, and inspection operations with a maximum end speed of 1.0 m/s.

Flexible Integration and Control

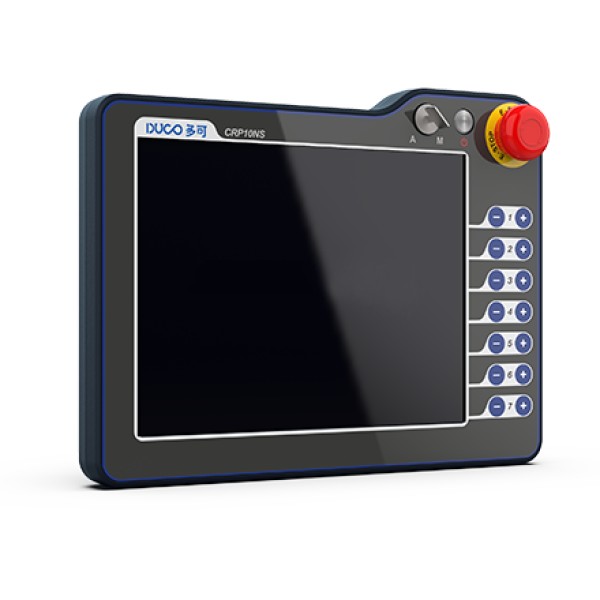

The cobot supports installation in any orientation and provides IP54/IP65 protection for flexible deployment in demanding production environments. It communicates through TCP/IP, Modbus/TCP, Profinet, and Ethernet/IP, while the DC15S controller and 10.4-inch capacitive teach pendant simplify setup, programming, and operation.

Application Scenarios

The GCR3-618 is suitable for machine tending, loading and unloading, assembly, inspection, sorting, welding support, and small-batch, multi-variant manufacturing. Its compact structure helps manufacturers improve cycle stability and quickly switch between production tasks.

Operational Advantages

With six joints offering ±360° motion, typical power consumption of 200 W, and a tool interface compliant with ISO 9409-1, the robot delivers adaptable automation for electronics, automotive components, semiconductors, medical products, metalworking, and educational applications.

Payload: 3 kg Reach: 618 mm Degrees of Freedom: 6 Repeatability: ±0.02 mm Maximum End Speed: 1.0 m/s
