Description
The UP100 is a portable battery powered instrument which gives visible and audible indication of ultrasonic frequencies. It is intended for use as a diagnostic tool in the analysis of steam trap operation and can also be used to detect leaks in steam and compressed air systems. Some experience, together with a working knowledge of steam trap operation, is required to correctly interpret the signals.
The UP100 consists of 4 components:
The pistol housing.
The stethoscope probe module with extension rods.
The headset with extension cable.
The flexible carrying case.
Limiting conditions
Ambient temperature operating range: 0 to 50°C
Ambient temperature storage range -18 to 54°C
Technical specifications
| Circuitry | SMD/solid state heterodyne receiver |
| Frequency response | 20-100 kHz (centred on 38-42 kHz) |
| Sensitivity selection | 8 position precision attenuation |
| Ultrasonic level display | 10 segment red LED bargraph |
| Battery | 9 volt alkaline |
| Headset | Sony “Walkman” type model MDR 24 (non standard male plug) |
| Probes | Stethoscope/contact module type (STM-1) stainless steel plug in type with 140 mm stainless steel waveguide. Extension rods to 788 mm for inaccessible steam traps. |
Operation
Full operating instructions are included with each UP100.
Note: The UP100 is not suitable for use in hazardous areas.
Materials of construction
| Pistol housing | ABS plastic |
| Probe module | Stainless steel |
| Extension rods | Aluminium alloy |
| Carrying case | Black soft cordura |
Spares
The following spares are available:
• 9 volt alkaline battery
• Sony MDR 24 headset (non standard male plug)
• STM-1 probe
• 788 mm extension rods

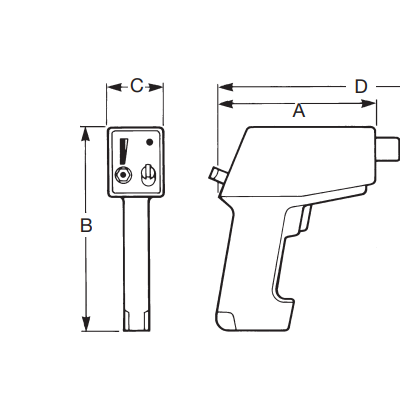

Dimensions (approximate) in millimetres
