BRV2S Pressure Regulator Typical Applications
Small steam or gas pressure reducing applications.

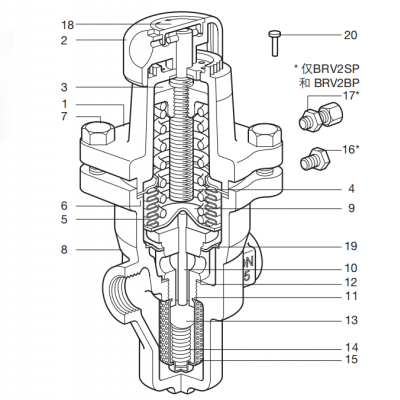

Construction Materials for pressure regulator BRV2S
Limiting Operating Conditions - steam or gas
Max. Upstream Pressure 275 psig (19 barg)
Max. Downstream Pressure 125 psig (8.0 barg)
Max. Operating Temperature 410˚F (210˚C)
Max. Cold Hydraulic Test 550 psig (38 barg)
Max. Recommended Turndown Ratio 10:1 psig at Maximum Flow
Shutoff ANSI Class IV
SIZE for BRV2S Pressure Regulator
