E+H thermometers temperature measurement TM101 basic sensor instrument el measurement
Specification
| Product Name | E+H thermometers temperature measurement TM101 basic sensor instrument |
| Model | iTHERM ModuLine TM101 |
| Application | temperature measurement |
| Outer diameter protection tube / Insert | 6,0 mm |
| Characteristic | Basic technologie metric style |
| Max. immersion length | up to 1.000,0 mm (39'') |
| Integration head transmitter | (4 ... 20 mA; HART) |
| Response time | t90 around 17 s |
| Accuracy | Class A acc. to IEC 60751 Class B acc. to IEC 60751 |
| Thermocouple | Typ K up to 600 °C (1.112 °F) |
| Operating temperature range | -50 °C ...200 °C (-58 °F ...392 °F) |
| Insert Material | 316L (1.4404) Alloy 600 (2.4816) |

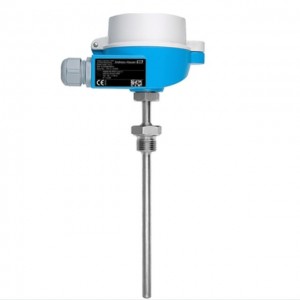

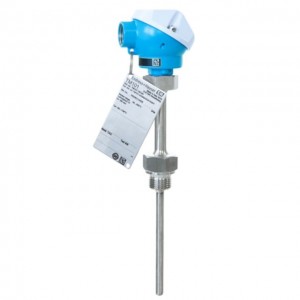

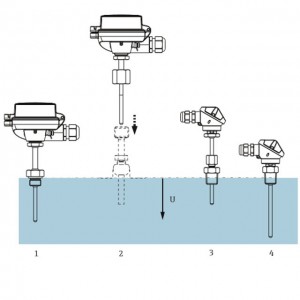

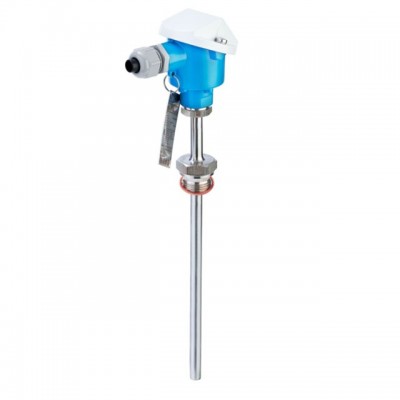

Detailed Images
