OTC FD-B6 welding robot
| Number of Axes | 6 |
| Maximum Payload Capacity | 13.2 lbs (6 kg) |
| Positional Repeatability | ± 0.08 mm |
| Drive Capacity | 3132W |
| Working Range, Arm, J1 (Rotation) | ±170 ° (±50°) |
| Working Range, Arm, J2 (Lower Arm) | -155 ° to +90° |
| Working Range, Arm, J3 (Upper Arm) | -170° to +245° |
| Working Range, Wrist, J4 (Swing) | ±155° (+/- 170°) |
| Working Range, Wrist, J5 (Bending) | -45° to +225° |
| Working Range, Wrist, J6 (Twist) | ±205° (+/- 360°) |
| Maximum Velocity, Arm, J1 (Rotation) | 4.19 rad/s (240°/s) [3.32 rad/s (190°/s)] |
| Maximum Velocity, Arm, J2 (Lower Arm) | 4.19 rad/s (240°/s) |
| Maximum Velocity, Arm, J3 (Upper Arm) | 4.01 rad/s (230°/s) |
| Maximum Velocity, Wrist, J4 (Swing) | 7.5 rad/s (430°/s) |
| Maximum Velocity, Wrist, J5 (Bending) | 7.50 rad/s (430°/s) |
| Maximum Velocity, Wrist, J6 (Twist) | 11.0 rad/s (630°/s) |
| Wrist Load, Allowable Moment, J4 (Swing) | 10.5 N⋅m |
| Wrist Load, Allowable Moment, J5 (Bending) | 10.5 N⋅m |
| Wrist Load, Allowable Moment, J6 (Twist) | 5.9 N⋅m |
| Wrist Load, Allowable Moment of Inertia, J4 (Swing) | 0.28 kg⋅m² |
| Wrist Load, Allowable Moment of Inertia, J5 (Bending) | 0.28 kg⋅m² |
| Wrist Load, Allowable Moment of Inertia, J6 (Twist) | 0.06 kg⋅m² |
| Arm operation cross-sectional area | 3.59 m² x 340° |
| Environmental Conditions | (0 to 45 °C), 20 ~ 80% RH (No condensation) |
| Mass | 319 lbs. (145 kg) |
| Upper arm payload capacity | 22.05 lbs. 10 kg |
| Installation type | Floor / Ceiling / Wall |
| Paint color | White (Munsell notation 10GY 9/1) |

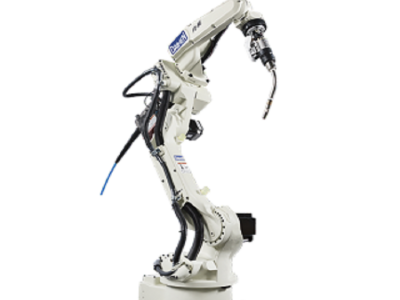

The FD-B6’s streamlined coaxial cable improves wire feeding, giving you better overall weld quality.Our FD-B6 arc-welding robot utilizes a streamlined, through-arm coaxial cable, which gives you maximum mobility in tight work spaces. This compact design makes welding in confined spaces or complicated fixtures a snap.
Click here to download more information.
ARC WELDING ROBOT MANIPULATOR
• Through-arm cable design improves torch reach & wire feeding
• Offers a wide working range with an independently articulated arm
• Seamless digital connection with all OTC Daihen brand welding power supplies
• Improved vibration restraining control provides smooth robot movement
• Built-in mechanical shock sensor
• Single source technology – all components are manufactured by OTC Daihen.
• Highly versatile design supports most welding applications
FD11 ROBOT CONTROLLER
• Windows XP based open architecture
• Large memory capacity and 40 Input / 40 Output control signals
• Advanced PLC functions allow for ladder diagram editing directly through the teach pendant
• Network capabilities – connects to Ethernet, DeviceNet, and PROFIBUS connections (may require additional hardware)
• Improved Specification for severe condition such as high-humidity & high-temperature
TEACH PENDANT
• Icon displays assist in quick & easy teaching
• 640×480 VGA color screen with LED backlight 65536 color display
• 3 position enable switch provides increased safety
• Multi-screen function allows user to view up to 4 screens simultaneously
• On-screen help function with complete instruction manuals
• Standard touch screen display with jog dial operation
