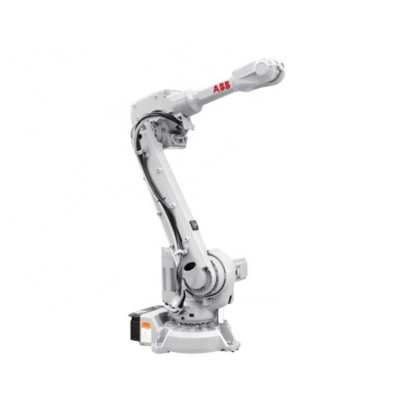

industrial robot material handling ABB IRB 2600ID 6 axis robotic humanoid machine
Main Specifications
Model:IRB 2600ID-15/1.85
Maximum reach:1850 mm
Maximum payload:15 kg
Pose repeatabilit: ± 0.04 mm
Number of axis :6
Weight:272 kg
Protection rating:IP67
Product Description
| Production Name | 6 Axis robot arm of ABB IRB 2600 Material Handling robot arm |
| Model | IRB 2600ID-15/1.85 |
| Application | pick and place robot |
| Maximum reach | 1850 mm |
| Maximum payload | 15 kg |
| Pose repeatability (ISO 9283) | ± 0.026 mm |
| Number of axis | 6 |

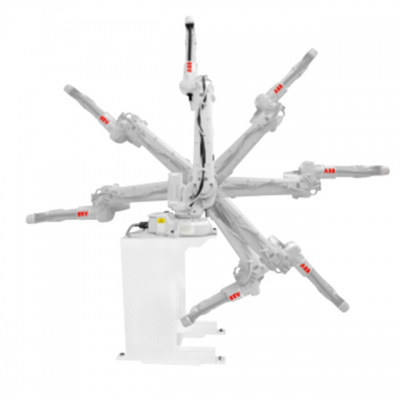

| Mounting position | Floor, wall, shelf, tilted, inverted |
| Footprint | 676mm x511mm |
| Weight | 273 kg |
| Protection rating | Standard IP67 for base and lower arm IP54 for upper arm |
| Controller | IRC5 Single cabinet |

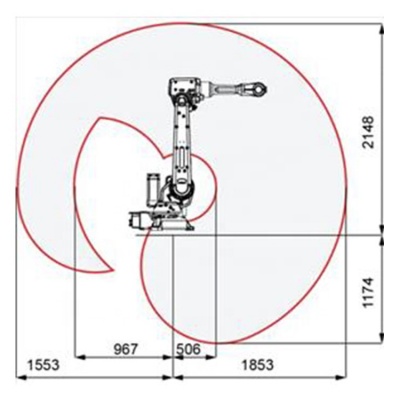

| Motion range | |
| A1 | 180° to -180° |
| A2 | 155° to -95° |
| A3 | 75° to -180° |
| A4 | +175° to -175°° |
| A5 | 120° to -120° |
| A6 | +400° to -400° |
Detailed Images
