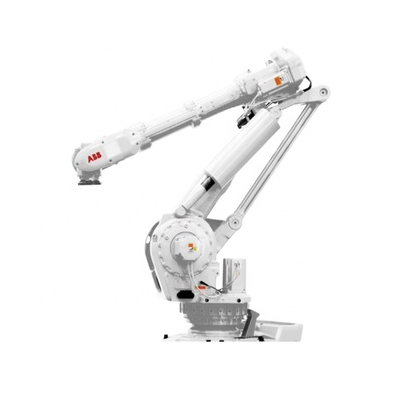

Max reach 3.15m ABB IRB660 special design 4 axis robot industrial delta robot apply on material handing robot arm
Main Specifications
Model:IRB 660-180/3.15
Maximum reach:3150 mm
Maximum payload:180 kg
Pose repeatabilit: ± 0.03mm
Number of axes :6
Weight:380 kg
Protection rating:IP67
Product Description
| Production Name | ABB IRB 660 Robotic arm |
| Model | IRB 660-180/3.15 |
| Application | material handling |
| Maximum reach | 3150 mm |
| Maximum payload | 180kg |
| Pose repeatability (ISO 9283) | ± 0.1 mm |
| Number of axes | 4 |
| Mounting position | Floor |
| Footprint | 1136mm x 850mm |
| Weight | 1650kg |
| Protection rating | IP67 |
| Controller | Single cabinet,dual cabinet |

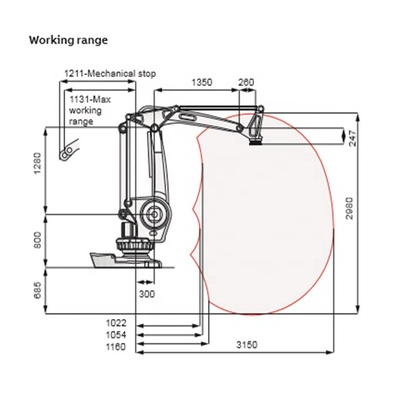

| Motion range | |
| A1 | + 180° to - 180° |
| A2 | + 85° to - 42° |
| A3 | + 120° to - 20° |
| A6 | + 300° to -300° |
Detailed Images
Our Services
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
