ABB robot arm 205kg payload 6 axis robot arm price IRB 6700 new generation robot spray paintinging
Main Specifications
Model:IRB 6700-205/2.8
Maximum reach:2800 mm
Maximum payload:205 kg
Pose repeatabilit: ± 0.05 mm
Number of axes :6
Weight:1270 kg
Protection rating:IP67
Product Description
| Production Name | 205kg payload 6 axis robot arm price ABB IRB 6700 new generation robot spray painting |
| Model | IRB 6700-205/2.8 |
| Application | robot spray painting |
| Maximum reach | 2800 mm |
| Maximum payload | 205kg |
| Pose repeatability (ISO 9283) | ± 0.05 mm |
| Number of axes | 6 |
| Mounting position | Floor , inverted |
| Footprint | 1004mm x 720mm |
| Weight | 1270 kg |
| Protection rating | IP67 |
| Controller | IRC5 Single cabinet, IRC 5 Panel mounted controller |

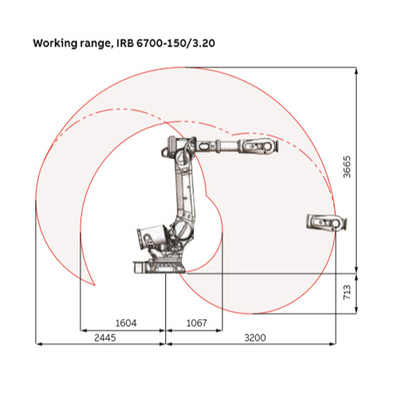

| Motion range | |
| A1 | 170° to -170° |
| A2 | 85° to -65° |
| A3 | 70° to -180° |
| A4 | 300 to -300° |
| A5 | 130 to -130° |
| A6 | 360 to -360° |

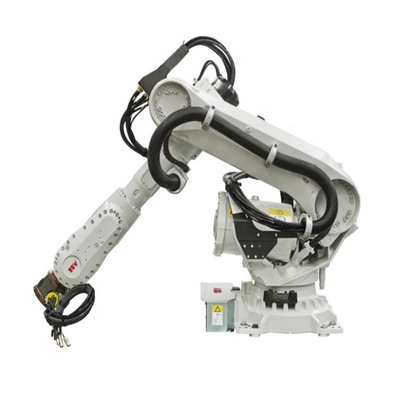

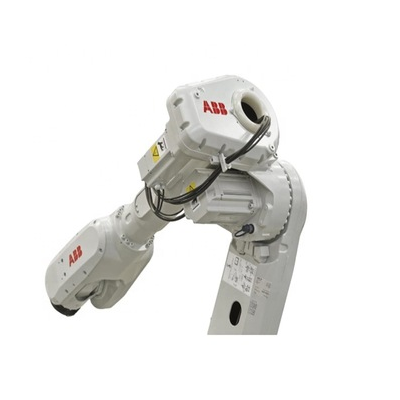

Detailed Images
Our Services
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
