ABB IRB 2400 industrial robotic 6 axis arm applying as cnc milling robot arm humanoid robotic equipments
Product Description
| Production Name | ABB IRB 2400 Robotic arm |
| Model | IRB 2400-12/1.55 |
| Application | grinding and polishing robot arm |

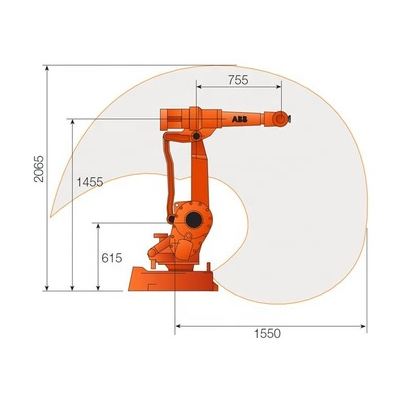

| Maximum reach | 1550 mm |
| Maximum payload | 12kg |
| Pose repeatability (ISO 9283) | ± 0.03 mm |
| Number of axes | 6 |
| Mounting position | Floor mounted and inverted mounted |
| Footprint | 723mm x 660mm |
| Weight | 380 kg |
| Protection rating | IP67 |
| Controller | IRC5 Single cabinet |
| Motion range | |
| A1 | + 180° to - 180° |
| A2 | + 110° to - 100° |
| A3 | + 65° to - 60° |
| A4 | + 200° to - 200° Optional: Unlimited |
| A5 | + 120° to - 120° |
| A6 | + 400° to - 400° Max. rev: +250° to -250° |
Detailed Images
