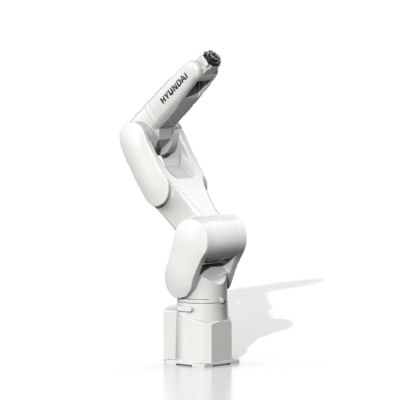

HH8 Payload 8kg Reach 832mm 6 Axis High Accuracy High Speed Assembly Machine Material Handling Robot

Payload 8kg Reach 832 mm 6 Axis High accuracy High Speed Assembly machineMaterial handling robotFeaturesHigh Speed, High
Negotiable
Brand: Hyundai Robotic Payload: 8kg
Reach: 832mmDegrees of Freedom: 6
Price: 25437.00美元/件 Min quantity: 1 件
Edit time: 2021-03-19 01:07 Hits: 34

Company

Hot products

Payload 8kg Reach 832 mm 6 Axis High accuracy High Speed Assembly machine&Material handling robot

Features
High Speed, High accuracy, Large working envelope, High reliability & flexibility


Max.MotionRange

Main Axes


Wrist Axes

Swivel


Horizontal


Vertical


R2


B(Bending)


R1(Twisting)

±170 °


+180 ° ~ -55 °


+213 ° ~ -66 °


±190 °


±135 °


±360 °

Max.Speed

Main Axes


Wrist Axes

Swivel


Horizontal


Vertical


R2


B(Bending)


R1(Twisting)

455 °/s


385 °/s


520 °/s


550 °/s


550 °/s


1000 °/s

AllowableTorqueWrist Axes

R2


B(Bending)


R1(Twisting)

1.73 kgf·m


1.73 kgf·m


1.02 kgf·m
