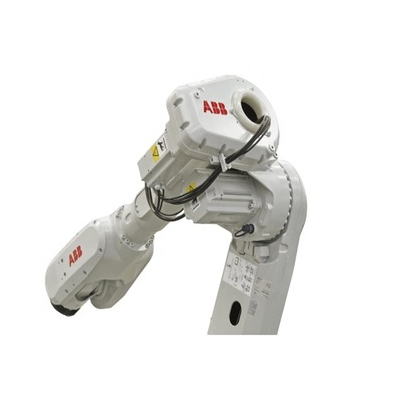

6 dof new generation ABB IRB 6700 robot arm for sale with low price apply for robotic arm stamping
Main Specifications
Model:IRB 6700-235/2.65
Maximum reach:2650 mm
Maximum payload:235 kg
Pose repeatabilit: ± 0.05 mm
Number of axes :6
Weight:1205 kg
Protection rating:IP67
Product Description
| Production Name | 6 dof new generation ABB IRB 6700 robot arm for sale with low price apply for robotic arm stamping |
| Model | IRB 6700-235/2.65 |
| Application | stamping robotic arm |
| Maximum reach | 2650 mm |
| Maximum payload | 235KG |
| Pose repeatability (ISO 9283) | ± 0.05 mm |
| Number of axes | 6 |
| Mounting position | Floor mounted and inverted mounted |
| Footprint | 1004mm x 720mm |
| Weight | 1205 kg |
| Protection rating | IP67 |
| Controller | IRC5 Single cabinet, IRC 5 Panel mounted controller |

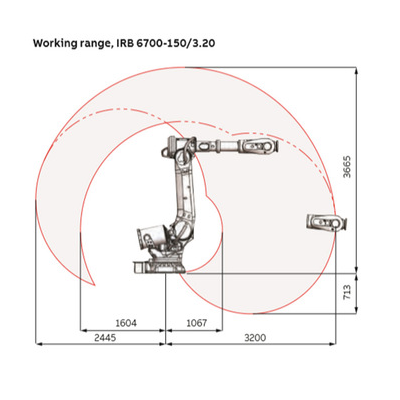

| Motion range | |
| A1 | 170° to -170° |
| A2 | 85° to -65° |
| A3 | 70° to -180° |
| A4 | 300 to -300° |
| A5 | 130 to -130° |
| A6 | 360 to -360° |
Detailed Images
Our Services
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
