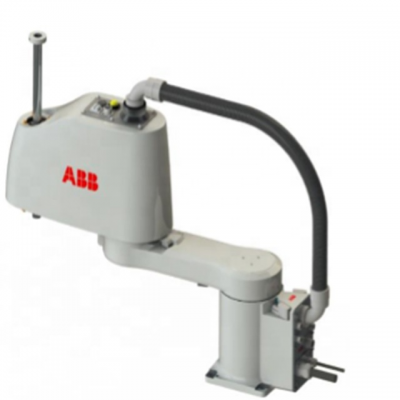

Articulated Robot Arm ABB IRB 910SC 4 dof robotic dealing small parts assembly and disassembly robot arm
Main Specifications
Model:IRB 910SC-3/0.55
Maximum reach:550 mm
Maximum payload:3 kg
Number of axes :4
Weight:25 kg
Protection rating:IP20
Product Description
| Production Name | Articulated Robot Arm ABB IRB 910SC 4 dof robotic dealing small parts assembly and disassembly robot arm |
| Model | IRB 910SC 3/0.55 |
| Application | small parts assembly and disassembly robot arm |
| Maximum reach | 550 mm |
| Maximum payload | 3KG |
| Number of axes | 4 |
| Mounting position | table |
| Footprint | 160mm x 160mm |
| Weight | 25 kg |
| Protection rating | IP20 |
| Controller | IRC5 compact |

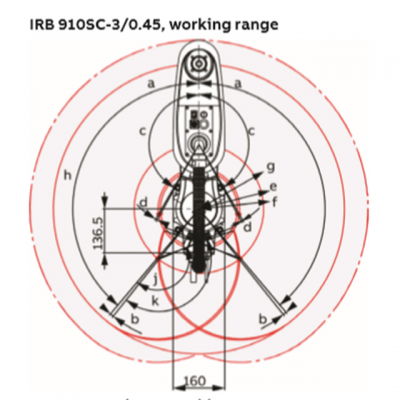

| Motion range | |
| A1 | 140° to -140° |
| A2 | 150° to -150° |
| A3 | 0° to -180° |
| A4 | 400 to -400° |
Detailed Images
